HEADLIGHTS
PW-223-213
HIGHSIDER BLACK 5 3/4 inch LED headlight BATES STYLE
Stylish LED headlight with black metal housing in BATES STYLE design. The round, chrome-plated reflector with black diaphragm and clear glass has a high beam, low beam and parking light function.
In the upper half, the low beam illuminates and when the high beam is switched on, both halves of the headlight illuminate.
The tested headlight is also robust and easy to install.
Dimensions:
– Diameter of housing: 155 mm
– Diameter of headlight insert: 145 mm
– Depth without glass: 110 mm
Attachment: bottom
connections:
(3 pin plug)
red = low beam (+)white = high beam (+)black = ground (-)
brown = position light (+)black = ground (-)
PW-223-214
HIGHSIDER CHROME 5 3/4 inch LED headlight BATES STYLE
Stylish LED headlight with chrome metal housing in BATES STYLE design. The round, chrome-plated reflector with black diaphragm and clear glass has a high beam, low beam and parking light function.
In the upper half, the low beam illuminates and when the high beam is switched on, both halves of the headlight illuminate.
The tested headlight is also robust and easy to install.
Dimensions:
– Diameter of housing: 155 mm
– Diameter of headlight insert: 145 mm
– Depth without glass: 110 mm
Attachment: bottom
connections:
(3 pin plug)
red = low beam (+)white = high beam (+)black = ground (-)
brown = position light (+)black = ground (-)
PW-223-033
CLASSIC 1 Headlight Unit with visor
H4 halogen main headlight comes in a high-quality, black aluminum housing and nostalgic visor (length: approx. 25 mm) for bottom mount. E-marked.
Specifications:
H4, 12 V 60/55 W
Bottom mount
Diameter: 157 mm | Depth: 220 mm
Bracket from mid-fixing screw to housing rear: 127 mm
Distance bracket in between: 18 mm
PW-223-031
CLASSIC 1 Headlight Unit with visor
H4 halogen main headlight comes in a high-quality, chromed aluminum housing and nostalgic visor (length: approx. 25 mm) for bottom mount. E-marked.
Specifications:
H4, 12 V 60/55 W
Bottom mount
Diameter: 157 mm | Depth: 220 mm
Bracket from mid-fixing screw to housing rear: 127 mm
Distance bracket in between: 18 mm
PW-223-037
HIGHSIDER 4 1/2 inch headlight CLASSIC 3 for lower mounting
HS1 halogen headlight with parking light and a high quality chrome plated aluminum housing in black or chrome available. The reflector emits a bright, symmetrical light – for good road illumination and optimum visibility, E-approved.
Sensational Give your bike an unmistakable style! The unusual design and perfect technology of the HIGHSIDER headlamp series make it a highlight in any case!
Technical data:
Lamps: HS1, 12 V 35/35 W
Fixing: bottom
Diameter: 125 mm
Depth: 167 mm
Holder centre fixing screw to front: 116 mm
Fixing: bottom

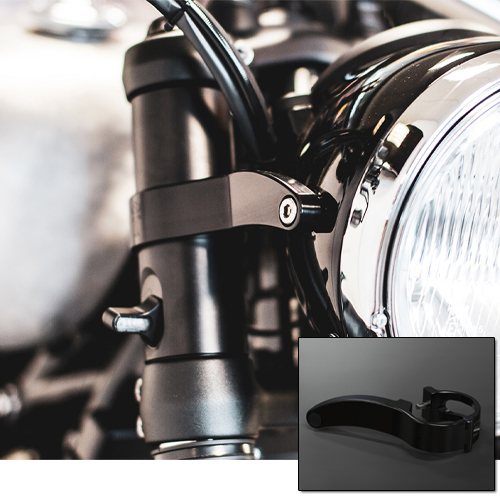

HEADLIGHT MOUNTING CLAMP
WK-106742-D47-F15

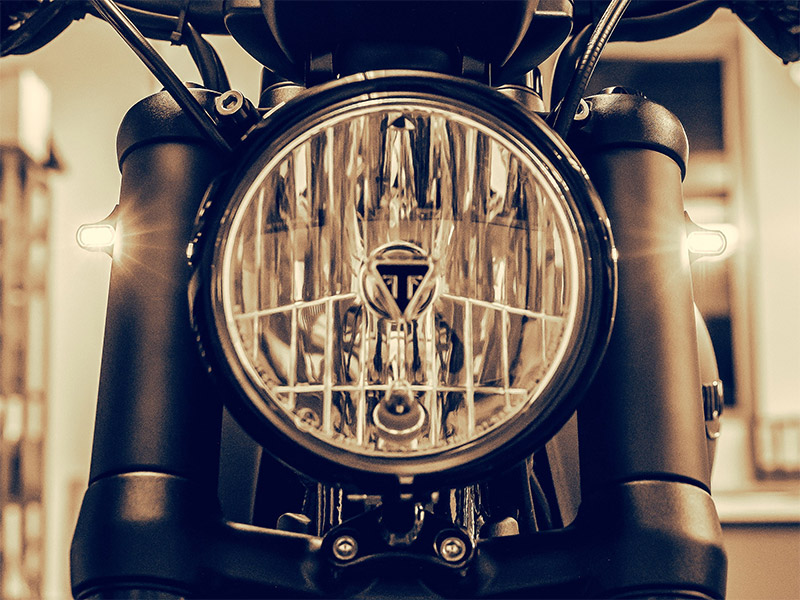

Headlight Holding Clamp OD- 47/48mm
TWINTON® motorcycle lamp holder for Triumph Bobber models
Specially developed for the TWINTON® headlight with an integrated original speedometer.
Finest surface refinement by the in-house BLACKPearl Eloxal.
Normal rod turn signals can be attached to the arms. To do so, the hole must be drilled through from the rear.
Lamp holder is available for fork diameter 47/48 – Triumph Bobber Black
TAILIGHTS
PW-255-111
FLIGHT Tailight Unit
High quality, black anodized, CNC machined aluminum housing with special lines and sporty design. 2 lighting units each with 4 powerful SMDs ensure an excellent luminosity, smoke lens, E-marked
Taillight to be installed in upright position. An upside down installation is not approved. loosen the M3 hex screw to adjust the angle of the stem within 30 degrees.
Dimensions:
Width: 61 mm | Height: 14 mm | Depth: 32 mm
PW-255-167
CONERO T2 Tailight Unit
Taillight with the remarkable shape comes with 4 efficient SMDs and a smoke lens. Premium quality housing made of black anodized, CNC milled aluminium. Elegant, stylish design with polished chamfers.
Dimensions:
Width: 45 mm | Height: 11 mm | Depth: 12 mm
Mounting screws: 2 x M4 x 10 mm, hole spacing: 52 mm (centre – centre)
PW-255-545
PROTON THREE Tailight Unit
With a PROTON rear light, the tailight component on the motorcycle can almost disappear visually.
The trend towards ever smaller lighting elements makes it possible to give the bike a cool and clean look.
The next smaller level has been reached and opens up completely new design options for motorcycles.
The model THREE from the PROTON family is attached to fairing parts or other motorcycle parts with good holding, double-sided adhesive tape.
Suitable only for rear, E-approved.
Dimensions:
Height: 12 mm | Width: 12 mm
Depth: 22 mm | Weight: 20 g
PW-255-032
STRIPE Tailight Unit
Taillight with Power-LED comes in a black universal housing made of aluminium with different lens, E-marked.
Dimensions:
Width: 53.5 mm | Height: 7 mm | Depth: 15 mm
PW-255-033
STRIPE Tailight Unit
Taillight with Power-LED comes in a chrome universal housing made of aluminium with different lens, E-marked.
Dimensions:
Width: 53.5 mm | Height: 7 mm | Depth: 15 mm
PW-255-015
MONO Tailight Unit
Taillight with one Power-LED comes in a chromed or black anodized aluminium housing with a clear lens and a round shape, E-marked.
Dimensions:
Diameter: 18 mm
Height: 8 mm
Mounting bolt M10 x 1.5 mm, length: 13 mm and nylon nut
PW-255-016
MONO Tailight Unit
Taillight with one Power-LED comes in a chromed or black anodized aluminium housing with a clear lens and a round shape, E-marked.
Dimensions:
Diameter: 18 mm
Height: 8 mm
Mounting bolt M10 x 1.5 mm, length: 13 mm and nylon nut
REFLECTORS
HSM-044138
Slim Self Adhesive Reflector
• Red
• Rectangular
• Dimensions: 100 x 13 mm
• Self-adhesive
• E-approved
• With edge
HSM-044141
Spirit Self Adhesive Reflector
• Red
• Hexagonal
• Dimensions: 125 x 18 x 9mm
• Self-adhesive
• E-approved
• With edge
KPR-LPR-001
Red Reflector With Bracket
Reflector (red): 125 mm x 18 mm
Holder: 2 mm
Hole spacing: 135-170mm (D 8 mm)
HSM-044151
Curved Self Adhesive Fork Reflector
• Fork housing with a diameter of up to 50 mm
• Rounded
• Dimensions: L 90 x W 24 x H 8 mm
• Curved adhesive surface
• Color orange
• E-approved
DAYTIME DRIVING LIGHTS (DRL)
PW-204-546
PROTON THREE DAYTIME RUNNING LIGHT ONLY
With a PROTON Daytime Running Light (DRL), this component on the motorcycle can almost disappear visually.
The trend towards ever smaller lighting elements makes it possible to give the bike a cool and clean look.
The next smaller level has been reached and opens up completely new design options for motorcycles.
The model THREE from the PROTON family is attached to fairing parts or other motorcycle parts with good holding, double-sided adhesive tape.
Suitable only for front, E-approved
Dimensions:
Height: 12 mm | Width: 12 mm
Depth: 22 mm | Weight: 20 g
INDICATORS
HSM Indicators
HSM-284863
FLY SMD Indicator
• Sold in Pairs
• Black
• Material: aluminum
• Clear glass
• 4 x solder connector (Ø = 0.50² – 1.50²)
• M6 plastic nut + washers
• 1 x SMD 1.5W
• Dimensions: L 9.8 x W 9.8 x H 14.2 mm
• Cable length: 430mm
• E-approved
HSM-294062
MINI BULLET LED Indicator
• Sold in Pairs
• Black
• Tinted
• 12V 2W
• M8/8mm thread
• Aluminum 6061
• Dimensions: Ø 25 x L 43 x D 60mm
• E-approved
HSM-284774
HEAT SMD Indicator
• Sold in Pairs
• Black
• Slightly tinted
• Rubber arm
• Thread: M8/8mm thread
• Dimensions: L 64.0 x W 15.5 x H 13 mm
• Rubber cover M8 nut incl.
• E-approved
HSM-284839
SOL LED Indicator
• Indicators with E-mark for front and rear
• Black aluminum housing
• Tinted glass
• Rubber bearing
• Slotted nut and washer
• New modern LED flashing technology
• 12V 2W 1 led
• Overall length: 72 mm
• Dimensions: L 72 x D 25.5 x H 30.5 mm
• Connection: M8 x 1.25
• Sold in Pairs

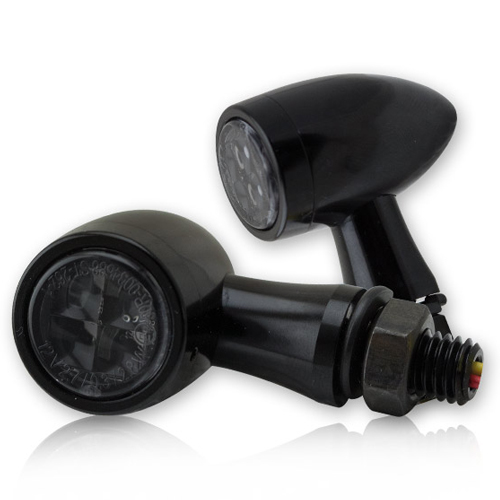

HSM-294000-S-BLK

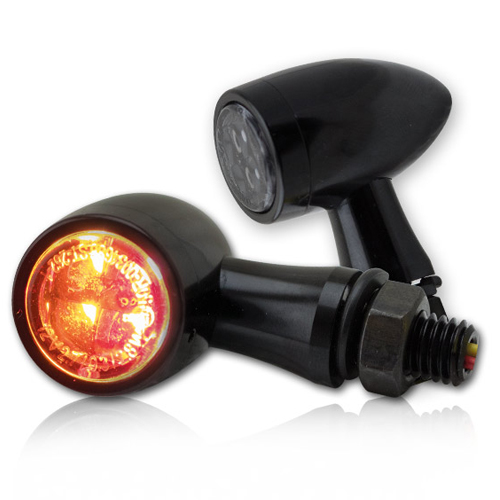

BLACK JACK SMD Indicator
• Black / Black
• Tinted
• M8/8mm thread
• Cable length: 40cm
• Aluminum
• Dimensions: Ø 22 x D 37 mm
• Dimensions: length complete with thread 52 mm
• Extras: exchangeable coloured ring (sold separately)
HSM-294000-SR

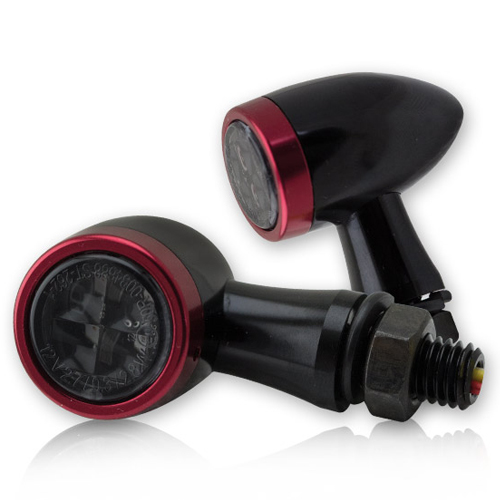

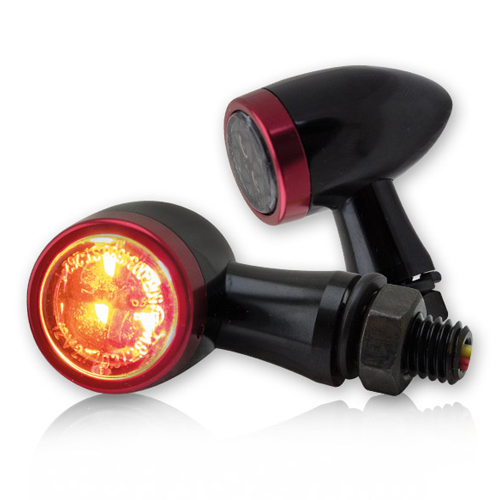

RED JACK SMD Indicator
• Black / Red
• Tinted
• M8/8mm thread
• Cable length: 40cm
• Aluminum
• Dimensions: Ø 22 x D 37 mm
• Dimensions: length complete with thread 52 mm
• Extras: exchangeable coloured ring (sold separately)

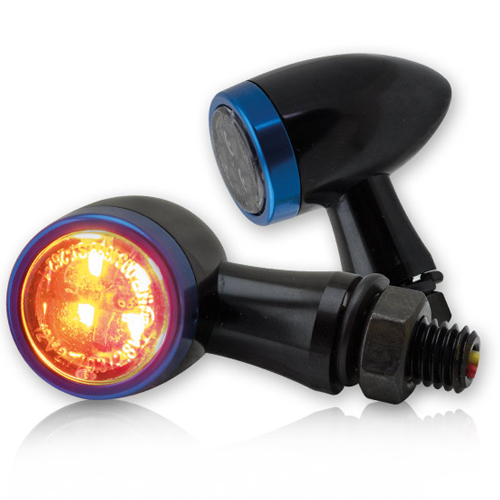

HSM-294000-SB

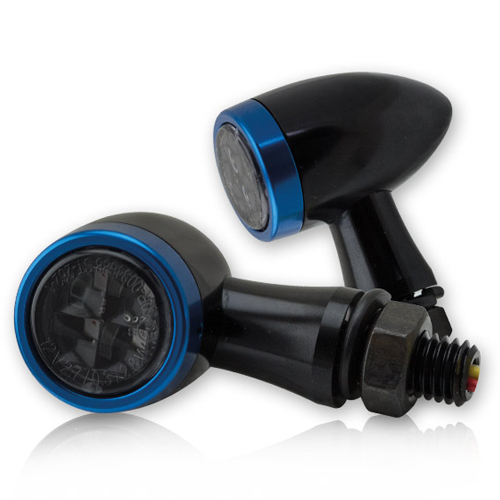

BLUE JACK SMD Indicator
• Black / Blue
• Tinted
• M8/8mm thread
• Cable length: 40cm
• Aluminum
• Dimensions: Ø 22 x D 37 mm
• Dimensions: length complete with thread 52 mm
• Extras: exchangeable coloured ring (sold separately)
HSM-294000-SK

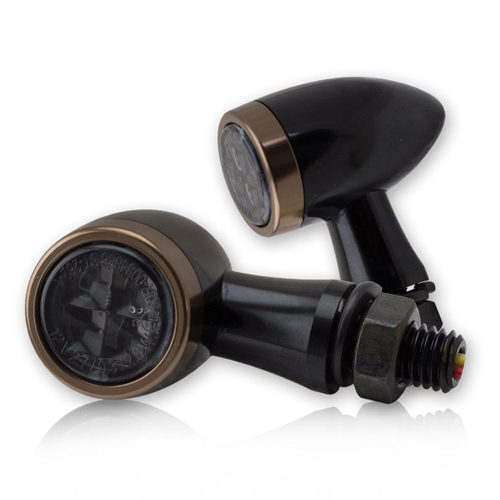

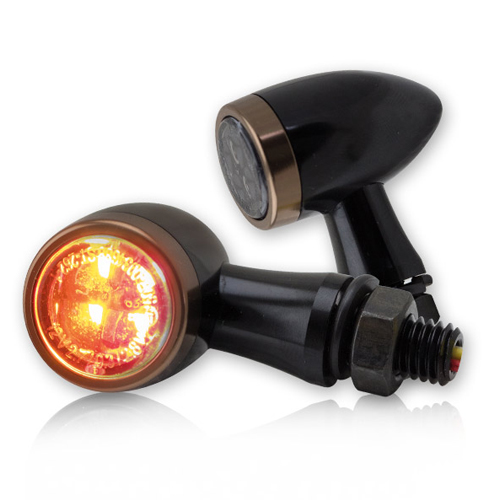

COPPER JACK SMD Indicator
• Black / Copper
• Tinted
• M8/8mm thread
• Cable length: 40cm
• Aluminum
• Dimensions: Ø 22 x D 37 mm
• Dimensions: length complete with thread 52 mm
• Extras: exchangeable coloured ring (sold separately)
HSM-294000-B
Blue Decorative Ring for JACK indicators
• Decorative ring aluminum
• Blue
• Sold in Pairs
• Dimensions: Ø 22.6 x H 5.6 mm | including assembly parts
• Dimensions: Ø 22 x D 37 mm
• Dimensions: length complete with thread 52 mm
HSM-294000-G

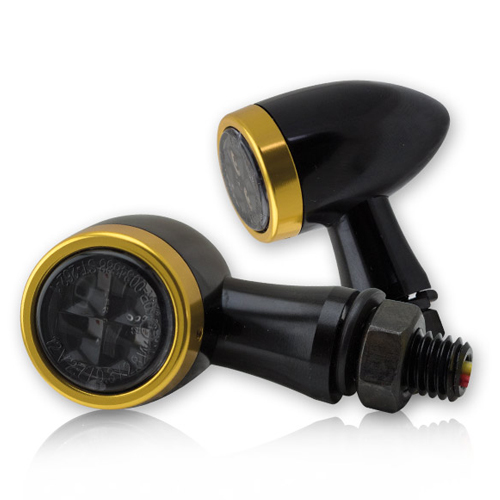

Gold Decorative Ring for JACK indicators
• Decorative ring aluminum
• Gold
• Sold in Pairs
• Dimensions: Ø 22.6 x H 5.6 mm | including assembly parts
• Dimensions: Ø 22 x D 37 mm
• Dimensions: length complete with thread 52 mm
HSM-294000-K
Copper Decorative Ring for JACK indicators
• Decorative ring aluminum
• Copper
• Sold in Pairs
• Dimensions: Ø 22.6 x H 5.6 mm | including assembly parts
• Dimensions: Ø 22 x D 37 mm
• Dimensions: length complete with thread 52 mm
HSM-294000-R
Red Decorative Ring for JACK indicators
• Decorative ring aluminum
• Red
• Sold in Pairs
• Dimensions: Ø 22.6 x H 5.6 mm | including assembly parts
• Dimensions: Ø 22 x D 37 mm
• Dimensions: length complete with thread 52 mm
HSM-294000-BLK
Black Decorative Ring for JACK indicators
• Decorative ring aluminum
• Black
• Sold in Pairs
• Dimensions: Ø 22.6 x H 5.6 mm | including assembly parts
• Dimensions: Ø 22 x D 37 mm
• Dimensions: length complete with thread 52 mm
IOMP Indicators
IOMP-10220

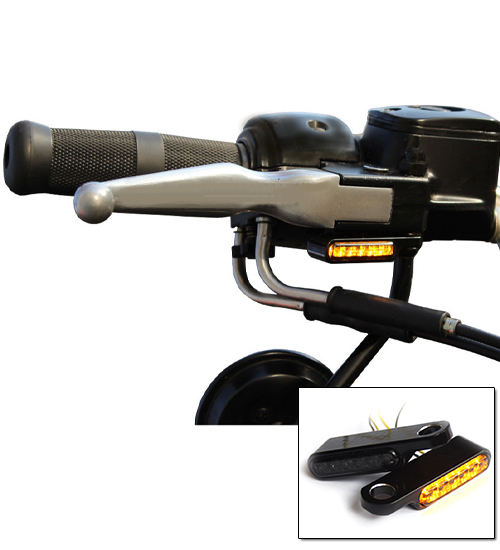

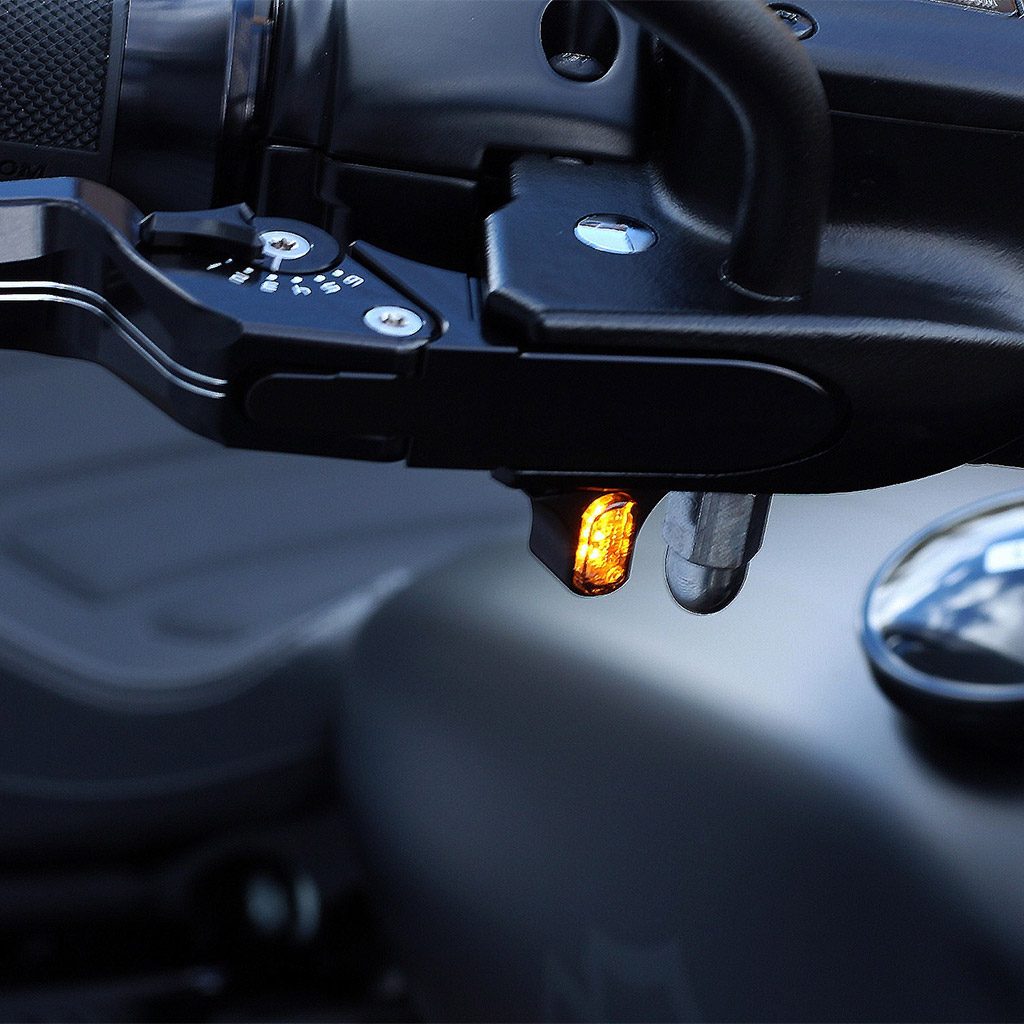

UNDERMOUNT INDICATORS
Universal fitment
• Black powder coated indicators with smoked lenses.
• Made of high strength CNC machined aluminum housing
• Mounts under the handlebar switch
• Sold in Pairs
KPR-UM-01-UNI
BLACK ROUND UNDERMOUNT INDICATORS
Suits Universal Mount
- Installation under the handlebar fitting
- high-strength CNC-milled aluminum housing
- Indicator bracket mounting D 9 mm
- No offset to the fitting
- Cable length: approx. 200 mm
- tinted glass

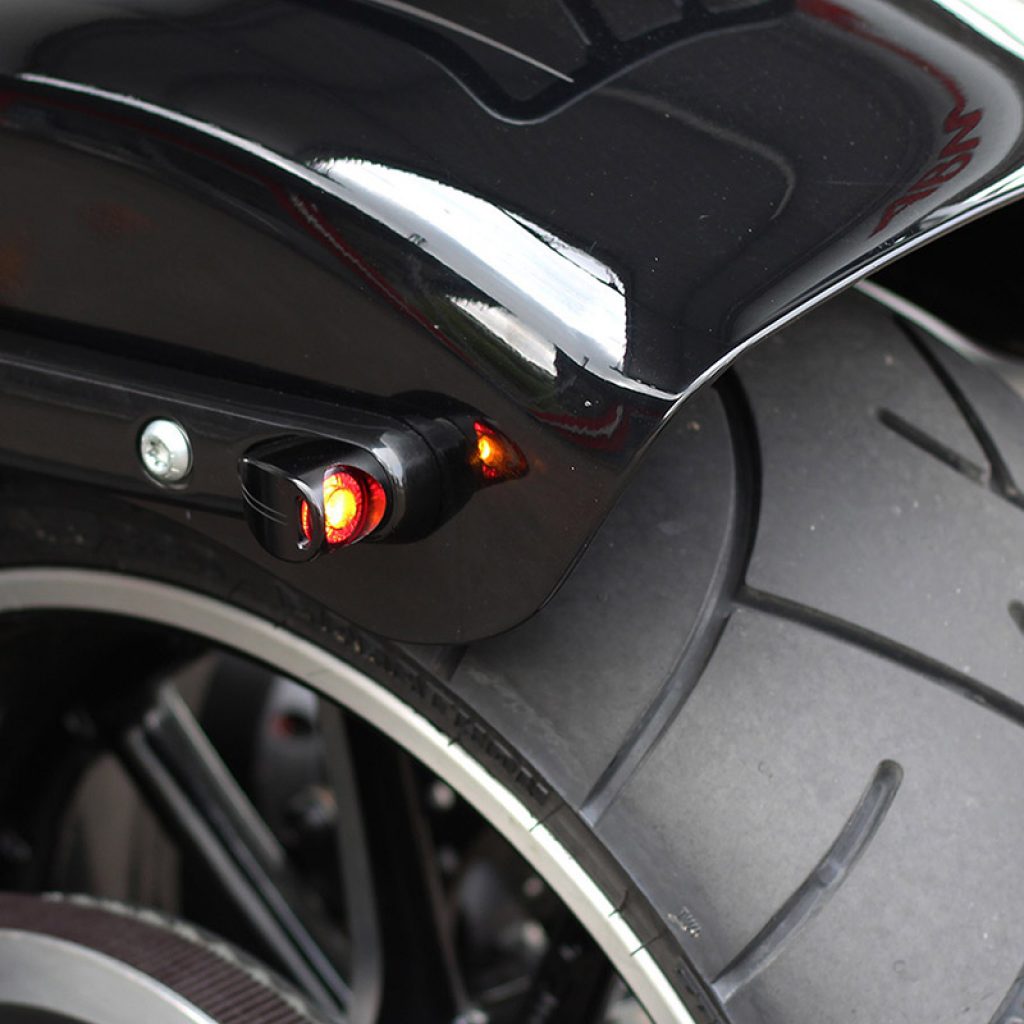

IOMP-10488-1

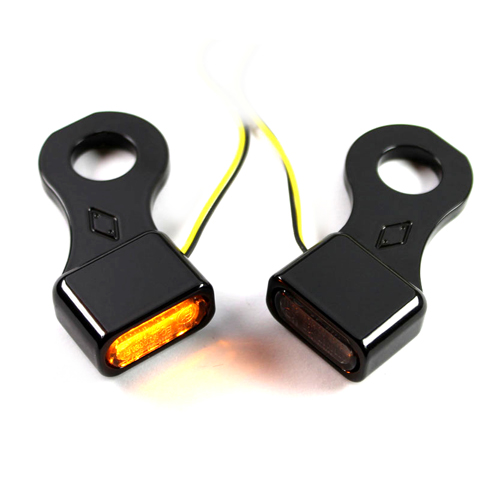

Mini SMD Shock Mount Indicators
Suits Universal Fitment
• High-strength CNC-milled aluminum housing•
• Easy assembly, without changing the panel parts•
• Attachment to the outer shock absorbers
• Insert L 21.5 mm x 8.5 mm
• Turn signal holder mounting D 12.5 mm
• SMD indicator with E-mark
• Tinted glass
• Sold in Pairs
IOMP-10488-2

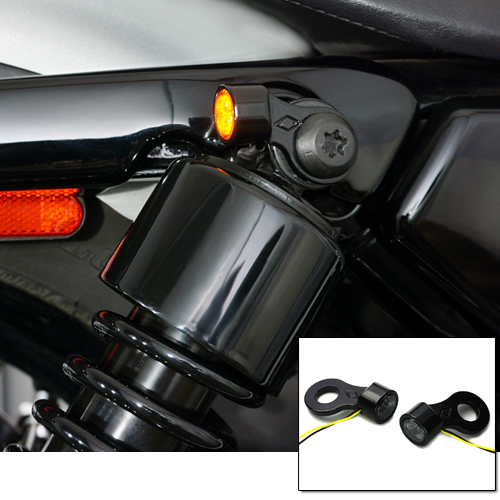

Mini Round SMD Shock Mount Indicators
Suits Universal Fitment
• High-strength CNC-milled aluminum housing
• Easy assembly, without changing the panel parts
• Attachment to the outer shock absorbers
• Insert D 15 mm
• Turn signal holder mounting D 12.5 mm
• SMD indicator with E-mark
• Tinted glass
• Sold in Pairs

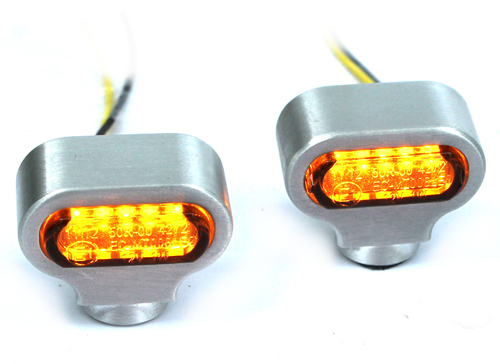

IOMP-10314

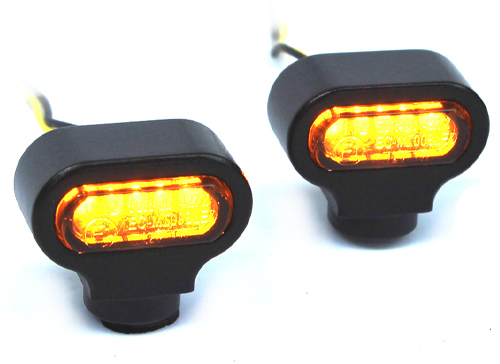

UNIVERSAL INDICATORS
Universal Fitment
• Black powder coated indicators with smoked lenses.
• Made of high strength CNC machined aluminum housing
• Indicator bracket mounting M6
• Sold in Pairs
IOMP-294001
MINI BULLET INDICATORS
Universal Fitment
• Black aluminum housed bullet style indicators with smoked lenses.
• Dimensions 19.5mm x 31mm (with thread 49mm) M8 thread
• Sold in Pairs
Thunderbike Indicators
TB-41-99-1350
Thunderbike LED turn signals are the perfect match to popular Stripe front turn signals, but can also be used alone or front & rear.
- CNC machined aluminium housing
- Universal M8 mounting
- Sold in pairs
Universal with M8 thread. We recommend a Load Equalizer for most motorcycles.
Highsider Indicators
PW-204-093
KOSO LED INDICATOR
Big things come in small packages.
Small in size but big on brightness, the ION features high-power LEDs that are highly visible to all vehicles on the road, day or night.
• 1/2x LED/ 12V/ 1.5 Watt
• Metal housing
• Size (HxLxW) approx. 13 x 14 x 12 mm
• Arm approx. 8 mm long
• Thread M6, approx. 8 mm long
• Delivery ready for assembly incl. Cable
• SOLD EACH
PW-204-610
M-BLAZE PIN LED Indicator
The mo.Blaze PIN from motogadget sets new standards for the turn signals with power LED technology.
its tiny dimensions and the reduced design make it almost disappear on the vehicle. As soon as it lights up, it is extremely bright due to the IntensiLED technology and can definitely no longer be overlooked. In addition, the patented TranzLight Technology (TLT) with its large beam angle ensures optimum visibility and safety. The direction indicator has an ECE approval as front and rear direction indicator. The aluminum housing is CNC machined and available in black anodized
SOLD EACH
Dimensions:
Total length with thread: 38.5mm
Length without mounting thread: 19.5 mm
Largest diameter: 16 mm
Cable length: approx. 100 cm
Weight: approx. 12 g
Fastening: M8 Threaded bolt
PW-254-2860
LITTLE BRONX LED Indicator
HIGHSIDER LED tail light/brake light/flasher combination LITTLE BRONX with tinted glass, E-approved
The LITTLE BRONX is guaranteed to attract attention thanks to the extremely bright SMD technology. Clear line, clear form: The finely sandblasted,CNC-milled aluminium housings offer you exactly that. This is in the truest sense of the word – DIRECTIONAL – design.
Sold In Pairs
Dimensions:
Width: 26 mm
Height: 12 mm
Depth: 15 mm
Threads: M8 x 16 mm
PW-203-220
STS 1 Sequence LED indicator Contrast Cut
The STS 1 with black anodized aluminium indicator housing has a modern running light system. The LED technology with many single-cell sources makes it possible. The flash frequency run from inner to outer side and it creates a wiper effect. Current car models have the new flashing effect. The lens is tinted and fits seamlessly into the design.
Dimensions:
A Width: 68 mm
B Width with stem: 82 mm
C Height: 20 mm | D Depth: 23 mm
Threaded bolt: M8
PW-203-221
STS 1 Sequence LED indicator
The STS 1 with black anodized aluminium indicator housing has a modern running light system. The LED technology with many single-cell sources makes it possible. The flash frequency run from inner to outer side and it creates a wiper effect. Current car models have the new flashing effect. The lens is tinted and fits seamlessly into the design.
Dimensions:
A Width: 68 mm
B Width with stem: 82 mm
C Height: 20 mm | D Depth: 23 mm
Threaded bolt: M8
PW-204-260
ARC Front LED indicator with DRL
Daytime Running Light, aluminium housing, clear lens, sold as pairs, E-mark for front use.
Dimensions:
A: 65 mm | B: 22 mm | C: 20 mm
Threaded bolt: M 8 x 1.25
PW-204-261
ARC Front LED indicator with DRL
Daytime Running Light, aluminium housing, clear lens, sold as pairs, E-mark for front use.
Dimensions:
A: 65 mm | B: 22 mm | C: 20 mm
Threaded bolt: M 8 x 1.25
PW-204-005
SPARK LED indicator Chrome
This Indicator is characterized by its minimal design size. A nice upgrade for every motorcycle.
Chrome housing, smoke lens, rubber stem, E-marked for rear installation.
Dimensions:
A: 25 mm | B: 36 mm
C: 11 mm | D: 14,5 mm
Threaded bolt: M 8 x 1.25
PW-204-006
SPARK LED indicator Black
This Indicator is characterized by its minimal design size. A nice upgrade for every motorcycle.
Black housing, smoke lens, rubber stem, E-marked for rear installation.
Dimensions:
A: 25 mm | B: 36 mm
C: 11 mm | D: 14,5 mm
Threaded bolt: M 8 x 1.25
PW-204-007
SPARK Front LED indicator
with DRL
This Indicator is characterized by its minimal design size
Intergrated with Daytime Running Light, black housing, smoke lens, rubber stem, E-marked.
Dimensions:
A: 25 mm | B: 36 mm
C: 11 mm | D: 14,5 mm
Threaded bolt: M 8 x 1.25
PW-204-171
APOLLO LED Bullet Indicator
Power LED indicator with black aluminium housing and smoke lens. For front and rear usage E-marked.
Modern light technology in extreme small dimension with 2 very intense SMD in the centre. COBs (Chip On Board) complete the light source at the external ring. The unit includes a anodized aluminium ring, which fits above the basis body.
Dimensions
A: 22 mm | B: 12 mm | C: 40 mm
Threaded bolt: M6 x 1.0 mm, Length: 12 mm
PW-204-173
APOLLO LED Bullet indicator with DRL
LED turn signal/position light in a black aluminium housing with tinted glass, for front E-approved.
With this innovativeLighting technology, 2 very bright SMD LEDs are installed in the center, which enable an extremely small design. The outer ring on the other hand consists of the new COB technology (Chip On Board). Due to thenew LED chip embedding for high-power LEDs, a very high luminance can be achieved with currently best possible efficiency and lifetime. This also allows higher light values to be achieved than with conventional LEDs.
Dimensions
A: 22 mm | B: 12 mm | C: 40 mm
Threaded bolt: M6 x 1.0 mm, Length: 12 mm
PW-204-176
APOLLO LED indicator
Inside the filigree housings Modern light technology in extreme small dimension with 2 very intense SMD LED in the centre. COBs (Chip On Board) complete the light source at the external ring. A nice upgrade for every motorcycle.
Dimensions:
A Diameter: 22 mm | B Width: 39 mm
C Depth: 21.5 mm | Stem length: 16 mm
Threaded bolt: M8 x 1.25
PW-204-178
APOLLO Front LED indicator with DRL
Inside the filigree housings Modern light technology in extreme small dimension with 2 very intense SMD LED in the centre. COBs (Chip On Board) complete the light source at the external ring. A nice upgrade for every motorcycle. Intergrated with Daytime Running Light, black housing, smoke lens, rubber stem, E-marked for rear installation.
Dimensions:
A Diameter: 22 mm | B Width: 39 mm
C Depth: 21.5 mm | Stem length: 16 mm
Threaded bolt: M8 x 1.25
PW-204-177
APOLLO LED indicator
Inside the filigree housings Modern light technology in extreme small dimension with 2 very intense SMD LED in the centre. COBs (Chip On Board) complete the light source at the external ring. A nice upgrade for every motorcycle.
Dimensions:
A Diameter: 22 mm | B Width: 39 mm
C Depth: 21.5 mm | Stem length: 16 mm
Threaded bolt: M8 x 1.25
PW-204-179
APOLLO Front LED indicator with DRL
Inside the filigree housings Modern light technology in extreme small dimension with 2 very intense SMD LED in the centre. COBs (Chip On Board) complete the light source at the external ring. A nice upgrade for every motorcycle. Intergrated with Daytime Running Light, black housing, smoke lens, rubber stem, E-marked for rear installation.
Dimensions:
A Diameter: 22 mm | B Width: 39 mm
C Depth: 21.5 mm | Stem length: 16 mm
Threaded bolt: M8 x 1.25
PW-200-264
ATTO LED Indicator
The world’s smallest turn signal! Sensationally small, spectacularly bright!
Behind this extremely small and sensationally powerful Atto lies a light surface that fits four times on a $2 coin! Thanks to the miniature housing, your motorcycle can be designed as minimalistically and individually as never before.
Dimensions: length 14mm, max. Diameter 10mm, lens diameter 7.8mm
With M5 x 0.5 x 6.5 fixing thread
PW-200-282
ATTO LED Indicator
The world’s smallest turn signal! Sensationally small, spectacularly bright!
Behind this extremely small and sensationally powerful Atto lies a light surface that fits four times on a $2 coin! Thanks to the miniature housing, your motorcycle can be designed as minimalistically and individually as never before.
Dimensions: length 14mm, max. Diameter 10mm, lens diameter 7.8mm
With M5 x 0.5 x 6.5 fixing thread
PW-204-540
PROTON TWO LED indicator
With a PROTON TWO indicators, the indicators can almost disappear visually.
This indicator is only noticeable when it is really necessary, when turning or overtaking.
The trend towards ever smaller lighting elements makes it possible to give the bike a cool and clean look.
The next smaller level has been reached and opens up completely new design options for motorcycles.
Indicator only. black housing, smoke lens, E-marked..
Dimensions:
A Diameter: 11 mm
B Width: 12 mm
D Depth: 16 mm
Thread: M8, length 18 mm
PW-204-622
Motogadget mo.blaze tens4 LED turn signal / position light
His tiny dimensions and reduced design make it almost disappear on the vehicle. As soon as it lights up, it is extremely bright due to the IntensiLED® Technology and definitely not to be overlooked. At the same time, the additional lateral beam angle ensures the best visibility and safety. The mounted indicator with position light has ECE approval as a front direction indicator. The aluminium housing is CNC milled and available in black anodized or high gloss polished finish. The flasher can be operated like any other LED flasher with load resistors or all our load-independent flasher relays (mo.flash, mo.wave, mo.stop, mo.relay+). Matching the mo.blaze tens4 we offer the mo.blaze tens3 as a 3in1 rear turn signal.
Advantages:
– Extremely small aluminum housing
– ECE approval, no registration or similar necessary
– Increased visibility and safety through additional lateral beam angle
– Highest luminosity through the latest high-power LED technology (IntensiLED®)
– Electronic voltage conditioning through 330kHz clocked, IC controlled constant current source and safe protection electronics
– The mounting thread is standard M8. Therefore no mounting adapters or special heatsink nut required
Specifications and Features:
Total length with thread: 29 mm
Length without mounting thread: 11 mm
Largest diameter: 11 mm
Cable length: approx. 110 cm
Weight with cable: approx. 20 g
Mounting: M8 threaded bolt
Power consumption: approx. 3/1 Watt
Scope of delivery: 1 piece, incl.
– Nut M8
– 3 push-lock cable connectors
– Installation instructions.
PW-203-002
FLIGHT LED indicator
The turn signal with the high-quality aluminium housing convinces with its extraordinary design. The tinted glass is flush with the CNC-milled housing,gives an angular and compact impression when viewed from the front.
On the back, on the other hand, soft curves dominate, underlining the sporty character of the FLIGHT. The flexibleRubber handle fits seamlessly into the black housing. Modern LED’s in SMD construction provide excellent luminosity and make the FLIGHT indicator a real eye-catcher! E-approved for theUse as front and rear turn signal.
Dimensions:
Length: 30 mm
Length with Stem: 41 mm (rubber stem 11 mm)
Height: 16.5 mm
Width: 22 mm
Threaded bolt: M8 x 19 mm
PW-204-041
BLOCK LED indicator
The latest lighting technology in a dynamic metal housing in black.
Very bright LED indicator with tinted glass and COB (Chip On Board) technology.
The semiconductor chip without package is glued directly onto a printed circuit board and enables a smaller design and better heat dissipation.
An optical highlight on every motorcycle type.
Dimensions:
Width A: 33 mm
Width B: 48 mm
Height C: 20 mm
Depth D: 21 mm
Threaded bolt: M8 x 1.25 mm
PW-204-029
SCURO LED indicator
Newest light technology in black metal housing with smoke lens. Very bright LED indicator. With COB technology (Chip On Board). The semiconductor-chip wthout housing is directly adhered to the condutor board for smaller construction and better heat dissipation. A nice upgrade for every motorcycle, E-marked.
Dimensions:
A: 43 mm | B: 58 mm
C: 16 mm | D: 21 mm
Threaded bolt: M 8 x 1.25
PW-204-001
TINY LED indicator
Modern light technology in extreme small dimension. A nice upgrade for every motorcycle. Mini indicator with plastic housing and clear lens, E-marked as rear indicator.
Dimensions:
A: 23 mm | B: 25 mm
C: 13 mm | D: 15 mm
Threaded bolt: M8
PW-200-205
MICRO 1000 indicator
The micro 1000 Dark has two faces: black as the night / and bright as the day. The combination of the perfect light and High Power LED Technology with IC operated Long Life Protection Guard® system and a strong glass tint offers new styling options. The micro 1000 Dark hides what’s inside –while the high performance LEDs provide a spectacularly bright indicator signal, they are hidden behind the tinted glass when not in use.
High quality metal housing M8 x 20 Thread
PW-203-0050
HIGHSIDER AKRON-FLASH LED handlebar end indicator
Dimensions:
Width: 36 mm
Diameter: 34.5 mm
Cable length: approx. 1000 mm
Angle of the light modules continuously adjustable by 26°.
Connections:
Power consumption: 13.5 V, 0.26 A, 3.5W
Yellow cable = indicator (+)
Black cable = ground (-)
PW-203-0060
HIGHSIDER AKRON-FLASH LED handlebar end indicator/position light
Dimensions:
Width: 36 mm
Diameter: 34.5 mm
Cable length: approx. 1000 mm
Angle of the light modules continuously adjustable by 26°.
Connections:
Power consumption: 13.5V, 0.27A, 3.65W and 13.5V, 0.11A 1.49W
Yellow cable = turn signal (+)
White cable = position light (+)
Black cable = ground (-)
Wunderkind Indicators

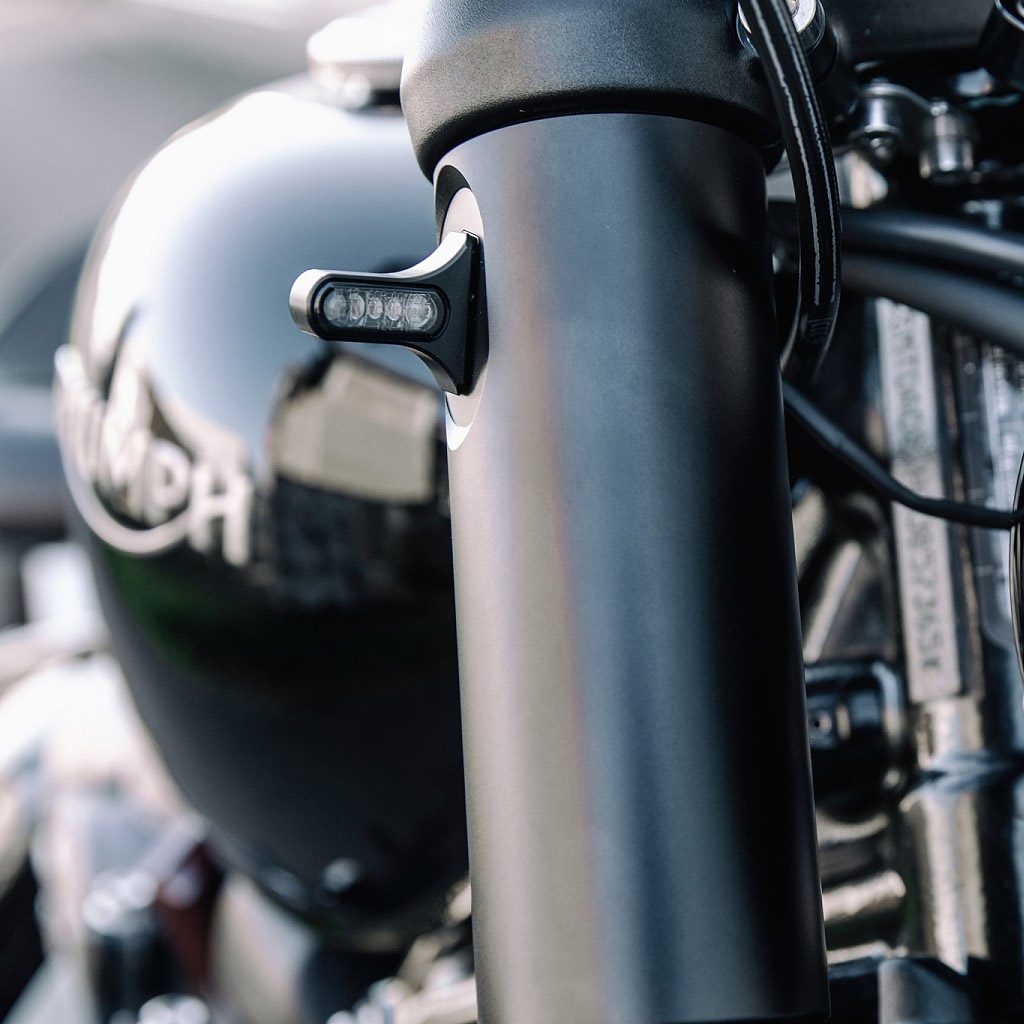

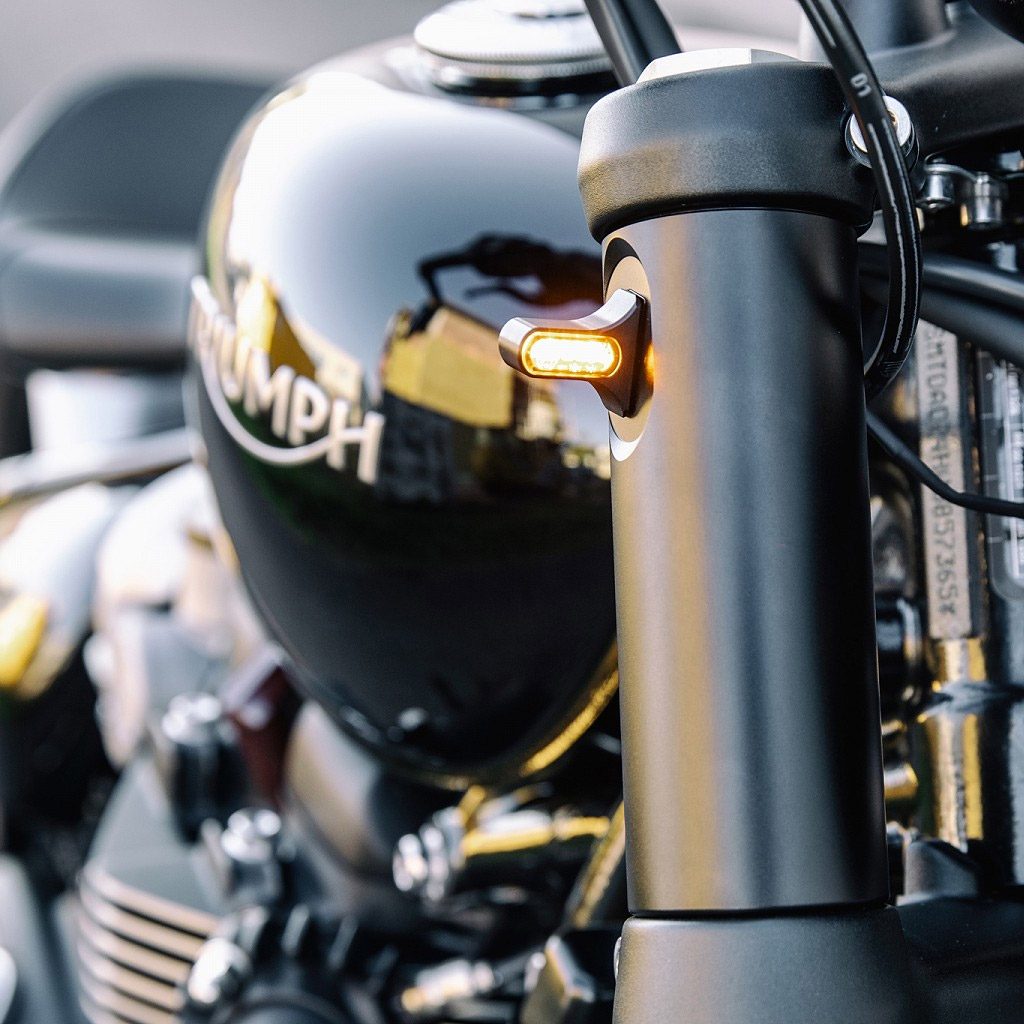

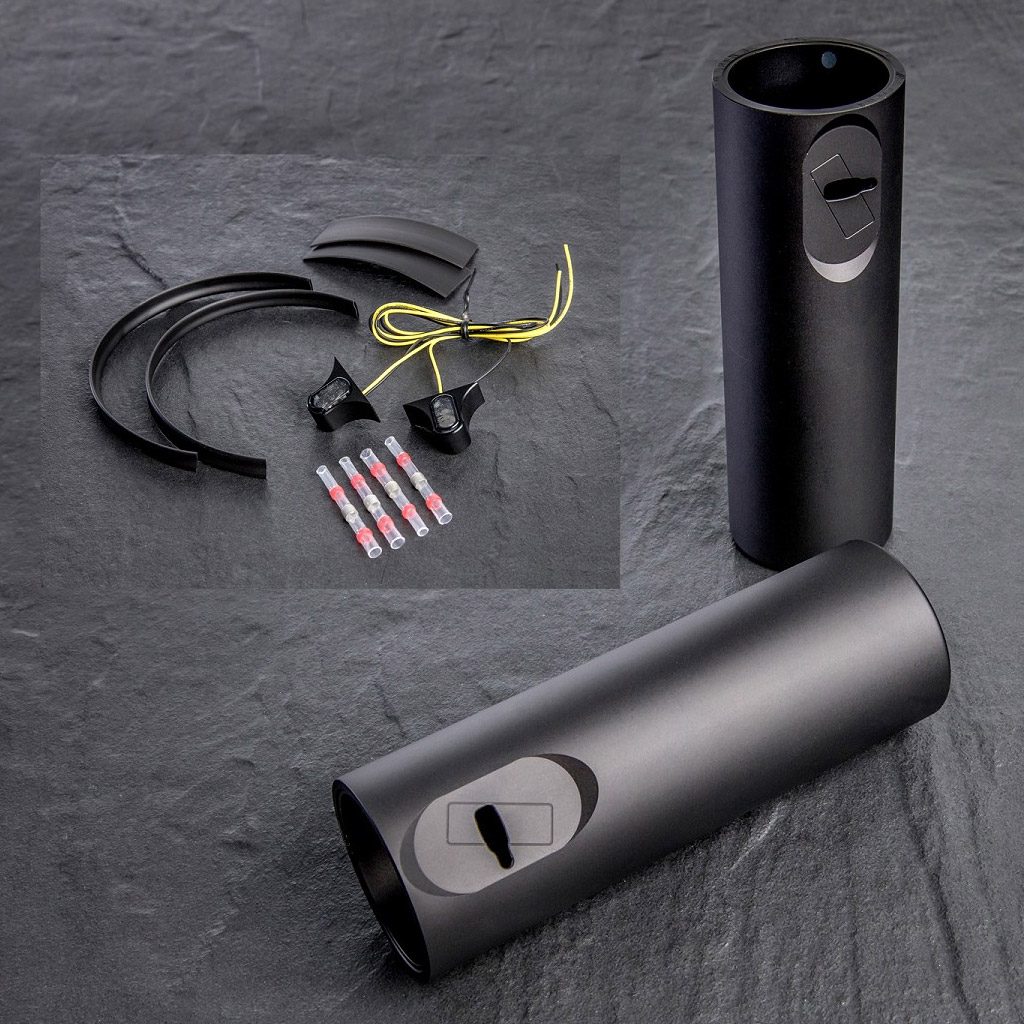

WK-106482-F24 (Blasted Black, Semi Matt)
Cover for upper front fork tubes.
Suits 2017-up Bonneville Bobber ABS
It covers the slight, shiny downpipes of the original fork and gives it an impressive optics.
The covers are mounted by O-rings which sucks the covers at the stand pipe. Thus, no damages by clamping bolts possible.
The covers have a discharge hole for rain or other splash water.
CNC-milled, surface bead blasted and semigloss anodized in black.
With LED-mini-indicator ‘littleOne’ long version (E-approval) including all neccessary resistors and solder connections.
Kit includes:
Cover for stand pipes BO1Q Ø41 mm [2x]
LED-mini-indicators littleOne E-approved
Resistors
Fixing material
WK-106572-F24 (Blasted Black, Semi Matt)
Cover for upper front fork tubes.
Suits 2018-up Bonneville Bobber Black ABS
It covers the slight, shiny downpipes of the original fork and gives it an impressive optics.
The covers are mounted by O-rings which sucks the covers at the stand pipe. Thus, no damages by clamping bolts possible.
The covers have a discharge hole for rain or other splash water.
CNC-milled, surface bead blasted and semigloss anodized in black.
With LED-mini-indicator ‘littleOne’ long version (E-approval) including all neccessary resistors and solder connections.
Kit includes:
Cover for stand pipes BO1Q Ø41 mm [2x]
LED-mini-indicators littleOne E-approved
Resistors
Fixing material
WK-106714-F15
“Little One Crosswise” Short Mini LED Indicator
CNC-milled housing.
For mounting at all plane surfaces with a minimum size of approx. 13 x 26 mm.
The housing is mounted by special sticky tape. No screwing neccessary.
Alternatively, the turn signals can also be mounted by two M3 screws.
LED indicator including E-approval.
Finest surface by house-made anodized layer BLACKPearl.
Solder connection for a fast electrical connection are included.

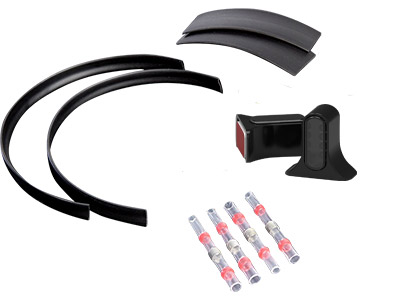

WK-106614-F15

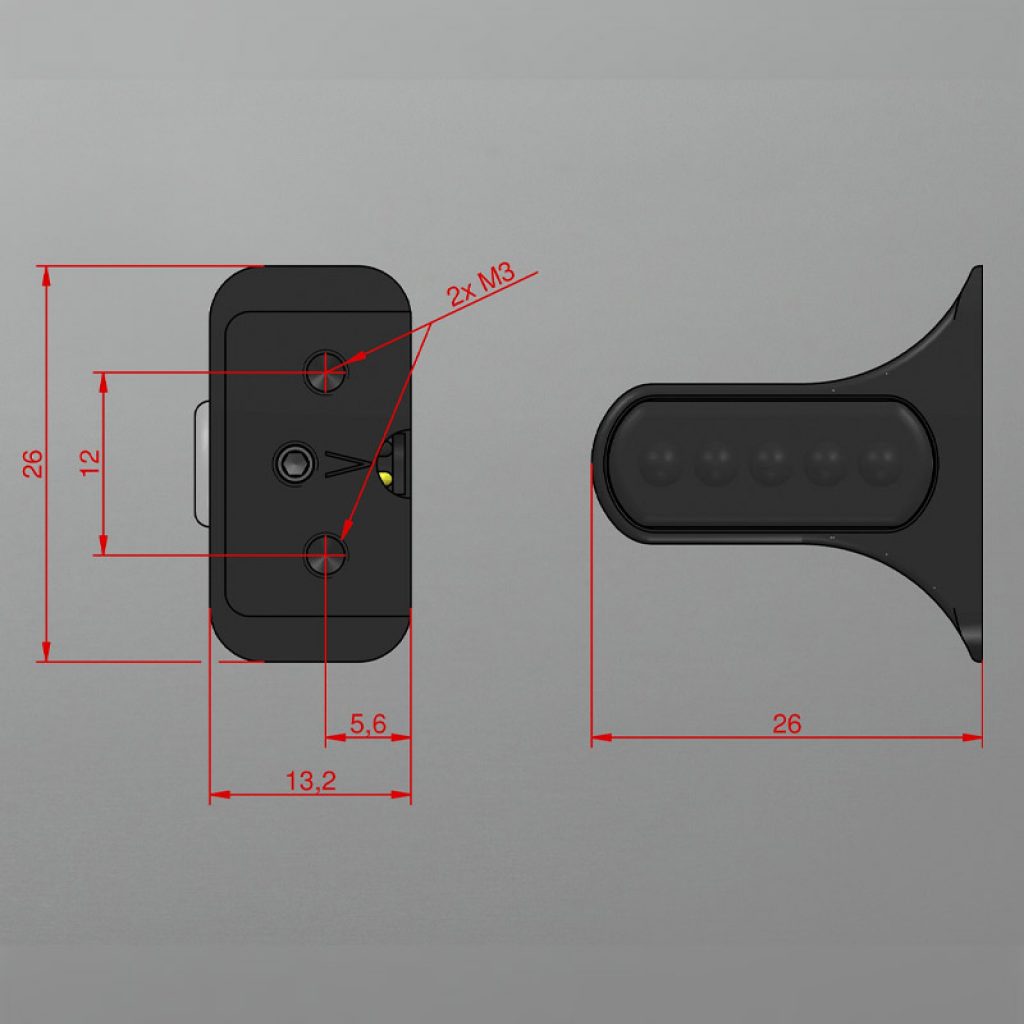

“Little One” Long Mini LED Indicator
CNC-milled housing.
For mounting at all plane surfaces with a minimum size of approx. 13 x 26 mm.
The housing is mounted by special sticky tape. No screwing neccessary.
Alternatively, the turn signals can also be mounted by two M3 screws.
LED indicator including E-approval.
Finest surface by house-made anodized layer BLACKPearl.
Solder connection for a fast electrical connection are included.
WK-106479-F15

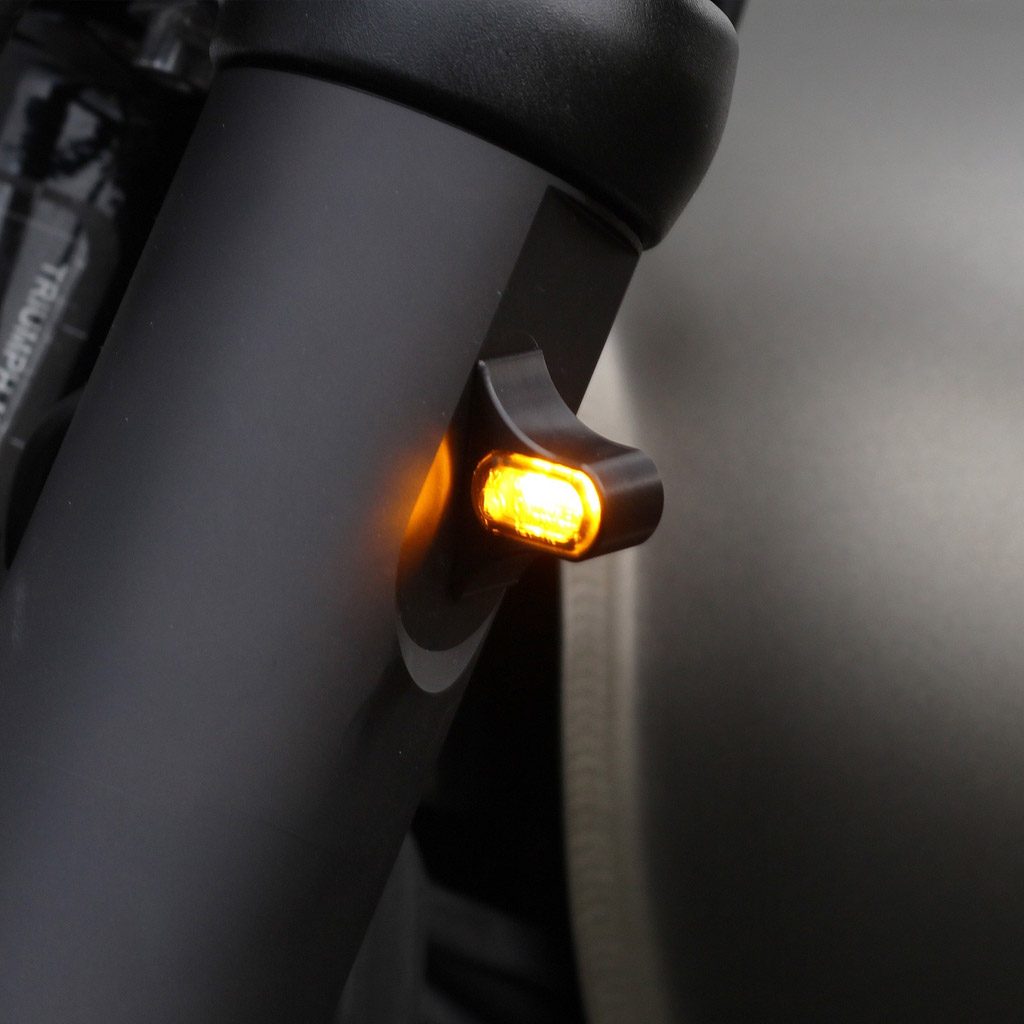

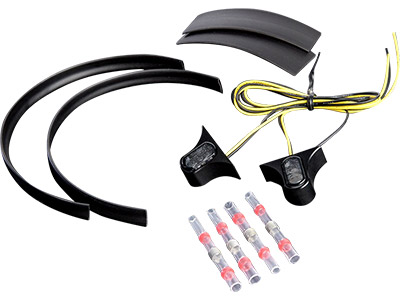

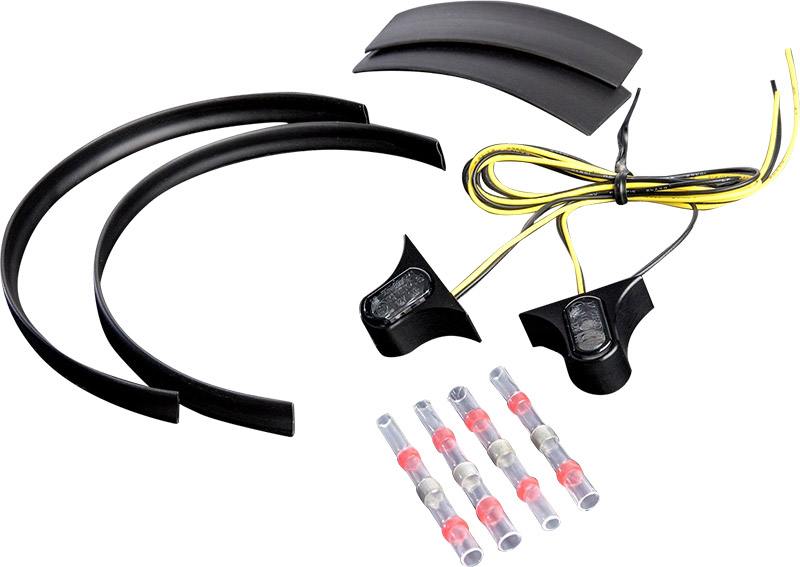

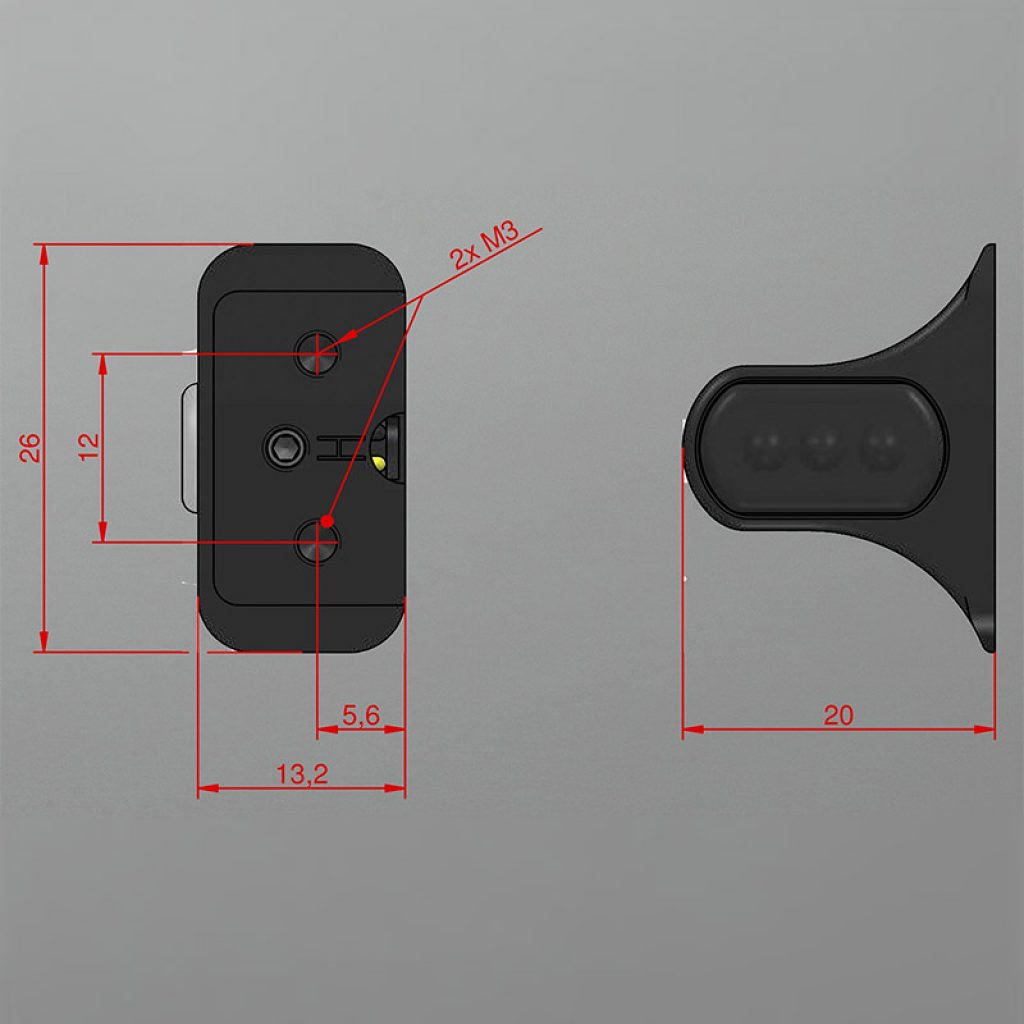

“Little One” Short Mini LED Indicator
CNC-milled housing.
For mounting at all plane surfaces with a minimum size of approx. 13 x 26 mm.
The housing is mounted by special sticky tape. No screwing neccessary.
Alternatively, the turn signals can also be mounted by two M3 screws.
LED indicator including E-approval.
Finest surface by house-made anodized layer BLACKPearl.
Solder connection for a fast electrical connection are included.
3 IN 1 REAR INDICATORS
HSM 3 In 1 Rear Indicators
HSM-284864
FLY SMD Rear Indicator With Run & Brake Light
• Sold in Pairs
• Black
• Material: aluminum
• Clear glass
• 8 x solder connector (Ø = 0.50² – 1.50²)
• M6 plastic nut + washers
• 2 x SMD 1.1W / 0.2 / 0.9W
• Dimensions: L 9.8 x W 9.8 x H 14.2 mm
• Cable length: 430mm
• E-approved
HSM-284775
HEAT SMD Indicator With 3 in 1 Run & Brake Light
Universal Fitment
• Sold in Pairs
• Black
• Slightly tinted
• Rubber arm
• Thread: M8/8mm thread
• Double function turn signal / rear light
• Dimensions: L 64.0 x W 15.5 x H 13 mm
• Rubber cover M8 nut incl.
• E-approved
HSM-284859
SOL-W LED Indicator With 3 in 1 Run & Brake Light
Universal Fitment
• Indicator / taillight combination with E-mark for the rear
• Black aluminum housing
• Tinted glass
• Rubber bearing
• Slotted nut and washer
• New modern LED flashing technology
• 12V 2W / 1.5W 2 led
• Overall length: 72 mm

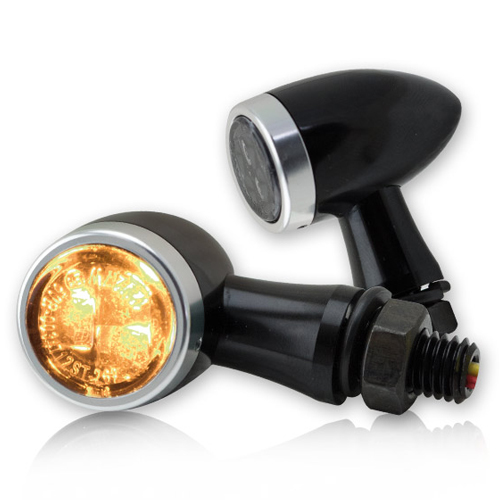

HSM-294005-S-BLK

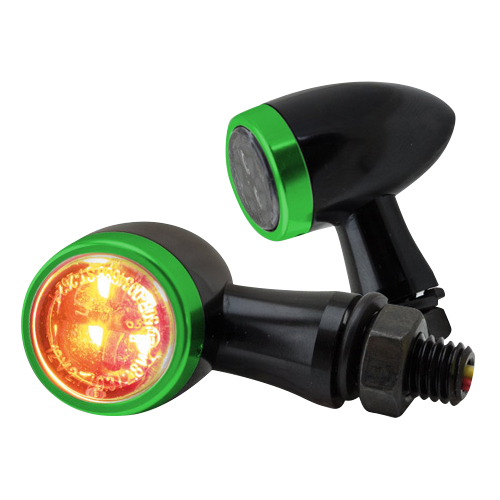

BLACK JACK SMD Indicator With 3 in 1 Run & Brake Light
Universal Fitment
• Black / Black
• Double function turn signal / rear light
• Tinted
• M8/8mm thread
• Cable length: 40cm
• Aluminum
• Dimensions: Ø 22 x D 37 mm
• Dimensions: length complete with thread 52 mm
HSM-294005-SR
RED JACK SMD Indicator With 3 in 1 Run & Brake Light
Universal Fitment
• Black / Red
• Double function turn signal / rear light
• Tinted
• M8/8mm thread
• Cable length: 40cm
• Aluminum
• Dimensions: Ø 22 x D 37 mm
• Dimensions: length complete with thread 52 mm
HSM-294005-SB
BLUE JACK SMD Indicator With 3 in 1 Run & Brake Light
Universal Fitment
• Black / Blue
• Double function turn signal / rear light
• Tinted
• M8/8mm thread
• Cable length: 40cm
• Aluminum
• Dimensions: Ø 22 x D 37 mm
• Dimensions: length complete with thread 52 mm
HSM-294005-SK
COPPER JACK SMD Indicator With 3 in 1 Run & Brake Light
Universal Fitment
• Black / Copper
• Double function turn signal / rear light
• Tinted
• M8/8mm thread
• Cable length: 40cm
• Aluminum
• Dimensions: Ø 22 x D 37 mm
• Dimensions: length complete with thread 52 mm
HSM-294000-B
Blue Decorative Ring for JACK indicators
• Decorative ring aluminum
• Blue
• Sold in Pairs
• Dimensions: Ø 22.6 x H 5.6 mm | including assembly parts
• Dimensions: Ø 22 x D 37 mm
• Dimensions: length complete with thread 52 mm
HSM-294000-G
Gold Decorative Ring for JACK indicators
• Decorative ring aluminum
• Gold
• Sold in Pairs
• Dimensions: Ø 22.6 x H 5.6 mm | including assembly parts
• Dimensions: Ø 22 x D 37 mm
• Dimensions: length complete with thread 52 mm
HSM-294000-K
Copper Decorative Ring for JACK indicators
• Decorative ring aluminum
• Copper
• Sold in Pairs
• Dimensions: Ø 22.6 x H 5.6 mm | including assembly parts
• Dimensions: Ø 22 x D 37 mm
• Dimensions: length complete with thread 52 mm
HSM-294000-R
Red Decorative Ring for JACK indicators
• Decorative ring aluminum
• Red
• Sold in Pairs
• Dimensions: Ø 22.6 x H 5.6 mm | including assembly parts
• Dimensions: Ø 22 x D 37 mm
• Dimensions: length complete with thread 52 mm
HSM-294000-BLK
Black Decorative Ring for JACK indicators
• Decorative ring aluminum
• Black
• Sold in Pairs
• Dimensions: Ø 22.6 x H 5.6 mm | including assembly parts
• Dimensions: Ø 22 x D 37 mm
• Dimensions: length complete with thread 52 mm
IOMP 3 In 1 Rear Indicators
IOMP-294003
MINI BULLET 3 in 1 INDICATORS
Universal Fitment
• Black aluminum housed bullet style 3 in 1 taillight / indicator with smoked lenses.
• Dimensions 19.5mm x 31mm (with thread 49mm) M8 thread
• Sold in Pairs
KPR-SHM-3
MINI ROUND SHOCK MOUNT 3 in 1 INDICATORS
Universal Fitment
• Black powder coated shock mount LED indicator / taillight with a black aluminium housing and smoke lens
• Suitable for universal fitment, easy installation, attaches to the outer shock absorbers
• Sold in Pairs
KPR-SHM-4
MINI RECTANGLE SHOCK MOUNT 3 in 1 INDICATORS
Universal Fitment
Black powder coated shock mount LED 3-1 indicators/taillight/brake light with a black aluminium housing and smoke lens
Suitable for universal fitment, easy installation, attaches to the outer shock absorbers
Sold in Pairs
Highsider 3 In 1 Rear Indicators
PW-254-171
APOLLO LED Bullet Indicator with Run & Brake Light
LED taillight / indicator with a black aluminium housing and smoke lens. E-mark for rear installation.
Modern light technology in extreme small dimension with 2 very intense SMD in the centre. COBs (Chip On Board) complete the light source at the external ring.
The best until the end – HIGHSIDER taillight and taillight / indicator series for the safety you need and the look you want – whatever you ride: cruiser, scooter or racer.
Sold in Pairs
Dimensions
A: 22 mm | B: 12 mm | C: 40 mm
Threaded bolt: M6 x 1.0 mm, Length: 12 mm
PW-254-026
SPARK 3 In 1 LED Rear indicator
This Indicator is characterized by its minimal design size
Brake Light, Running Light and Indicator. black housing, smoke lens, E-marked for rear installation.
Dimensions:
A: 25 mm | B: 36 mm
C: 11 mm | D: 14,5 mm
Threaded bolt: M 8 x 1.25
PW-254-028
SCURO 3 In 1 LED Rear indicator
Newest light technology in black metal housing with smoke lens. Very bright LED indicator with integrated taillight. With COB technology (Chip On Board). Brake Light, Running Light and Indicator, E-marked for rear installation.
Dimensions:
A: 43 mm | B: 58 mm
C: 16 mm | D: 21 mm
Threaded bolt: M 8 x 1.25
PW-254-176
APOLLO 3 In 1 LED Rear indicator
Modern light technology in extreme small dimension with 2 very intense SMD in the centre. COBs (Chip On Board) complete the light source at the external ring. Brake Light, Running Light and Indicator. black housing, smoke lens, E-marked for rear installation.
Dimensions:
A diameter: 22 mm
B width: 39 mm
C depth: 21.5 mm
Stem length: 16 mm
Threaded bolt: M 8 x 1.25
PW-254-177
APOLLO 3 In 1 LED Rear indicator
Modern light technology in extreme small dimension with 2 very intense SMD in the centre. COBs (Chip On Board) complete the light source at the external ring. Brake Light, Running Light and Indicator. chrome housing, smoke lens, E-marked for rear installation.
Dimensions:
A diameter: 22 mm
B width: 39 mm
C depth: 21.5 mm
Stem length: 16 mm
Threaded bolt: M 8 x 1.25
PW-200-295
ATTO 3 In 1 LED Rear indicator
The world’s smallest turn signal! Sensationally small, spectacularly bright!
Behind this extremely small and sensationally powerful Atto lies an optical and technical all-rounder: with a light surface that fits four times on a $2 coin, it disappears visually almost completely at the tail! Thanks to the miniature housing, the rear of the motorcycle can be designed as minimalistically and individually as never before. Running Light and Indicator. black housing, E-marked for rear installation.
Dimensions:
length 14mm, max.
Diameter 10mm, lens diameter 7.8mm
With M5 x 0.5 x 6.5 fixing thread
PW-200-294
ATTO 3 In 1 LED Rear indicator
The world’s smallest turn signal! Sensationally small, spectacularly bright!
Behind this extremely small and sensationally powerful Atto lies an optical and technical all-rounder: with a light surface that fits four times on a $2 coin, it disappears visually almost completely at the tail! Thanks to the miniature housing, the rear of the motorcycle can be designed as minimalistically and individually as never before.
Dimensions:
length 14mm, max.
Diameter 10mm, lens diameter 7.8mm
With M5 x 0.5 x 6.5 fixing thread
PW-254-540
PROTON TWO 3 In 1 LED Rear indicator
With a PROTON TWO indicators, the indicators can almost disappear visually.
This indicator is only noticeable when it is really necessary, when turning or overtaking.
The trend towards ever smaller lighting elements makes it possible to give the bike a cool and clean look.
The next smaller level has been reached and opens up completely new design options for motorcycles.
Brake Light, Running Light and Indicator. black housing, smoke lens, E-marked for rear installation.
Dimensions:
Diameter: 11 mm | Width: 12 mm
Depth: 16 mm | Thread: M8, length 18 mm
PW-254-033
CONERO 3 In 1 LED Rear indicator
Bright shining LED combination with the latest COB technology and smoke lens. Premium quality made of aluminium. Black anodized, cylindrical housing with polished chamfers give this model an elegant, stylish design. Brake Light, Running Light and Indicator, E-marked for rear installation.
Dimensions:
A: 45 mm | B: 15 mm
Wunderkind Fender Struts with Indicator/Tailight/Brakelight

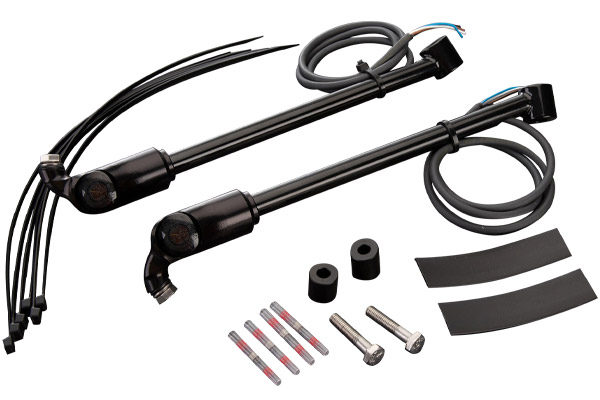

WK-106537-F26 – Black
Set of struts for rear fender incl. indicator/taillight combination
The conversion set for motorcycle rear fender consists of a left-hand and right-hand strut.
The struts are glossy black and plastic-coated.
Each housing at the end of the strut has integrated a LED-indicator/taillight combination.
The LED light unit has an E-approval.
The cables are guided invisibly down to the rocker in the struts.
Super clean optics, light unit is discreetly integrated into the struts of the fender.
Thunderbike 3 In 1 Rear Indicators
TB-41-99-1450
Thunderbike STRIPE LED Rear Indicator with Run & Brake Light
Thunderbike LED 3 in 1 turn signals are the perfect match for Stripe front turn signals, these come with integrated rear and brake light.
- CNC machined aluminium housing
- Universal M8 mounting
- Sold in pairs
Color: black
Universal with M8 thread. We recommend a Load Equalizer for most motorcycles.
CUSTOM WELD-IN INDICATOR HOUSING AND LED INSERTS
CNC housing made of weldable steel and a variety of led inserts offers additional possibilities to attach these lighting modules anywhere
Module 1 Components
HIGHSIDER CNC MODULE 1 WELDING HOUSING
Outside Dimensions: Width: 24,5 mm | Height: 11,5 mm
Depth: 12 mm
Inside Dimensions: Width: 22 mm | Height: 9 mm
Depth: 11 mm | Thickness: 1,3 mm | Back hole: 5 mm
SHIN YO Lighting Inserts
Dimensions: Width: 21,5 mm | Height: 8,5 mm | Depth: 11,5 mm
PW-207-601
HIGHSIDER CNC welding housing
Top CNC housing made of
good weldable steel.
Sold Ea
PW-255-147
SHIN YO LED TAILLIGHT with 4 SMDs
This sturdy LED Insert is a smoke lens and is E-marked.
Sold Each
PW-255-148
SHIN YO LED TAILLIGHT with 4 SMDs
This sturdy LED Insert is a red lens and is E-marked.
Sold Each
PW-204-147
SHIN YO LED Indicator with 5 SMDs
This sturdy LED Insert is a smoke lens and is E-marked for front and rear use.
Sold Pair
These lenses will fit our current style
Under Perch indicators Click Here
PW-254-145
SHIN YO LED Indicator/Tail Light
SHIN YO SMD tail light, brake light, turn signal MODULE 1 PRO, tinted glass
Sold Pair
Module 2 Components
HIGHSIDER CNC MODULE 2 WELDING HOUSING
Outside Dimensions: Width: 18 mm | Height: 11 mm
Depth: 11 mm
Inside Dimensions: Width: 15.5 mm | Height: 11 mm
Depth: 13.5 mm | Thickness: 1,3 mm | Back hole: 5 mm
SHIN YO Lighting Inserts
Dimensions: Width: 15 mm | Height: 8,5 mm | Depth: 11 mm
PW-207-602
HIGHSIDER CNC welding housing
Top CNC housing made of
good weldable steel.
Sold Ea
PW-204-148
SHIN YO LED Indicator
This sturdy LED Insert is a smoke lens and is E-marked for front and rear use.
Sold Pair
PW-223-359
SHIN YO LED TAILLIGHT with 4 SMDs
This sturdy LED Insert has a smoked lens with red SMD’s and is E-marked.
Sold Each
Shorty 2 Components
HIGHSIDER CNC SHORTY 2 WELDING HOUSING
Outside Dimensions: Width: 42,5 mm | Height: 11 mm
Depth: 22 mm
Inside Dimensions: Width: 40.5 mm | Height: 9 mm
Depth: 13 mm | Thickness: 1,3 mm | Back hole: 5 mm
SHIN YO Lighting Inserts
Dimensions: Width: 40 mm | Height: 8 mm | Depth: 13 mm
PW-207-600
HIGHSIDER CNC welding housing
Top CNC housing made of
good weldable steel.
Sold Ea
PW-255-073
SHIN YO LED TAILLIGHT
This sturdy LED Insert is a smoke lens and is E-marked.
Sold Each
PW-255-074
SHIN YO LED TAILLIGHT
This sturdy LED Insert is a red lens and is E-marked.
Sold Each
PW-254-071
SHIN YO LED Tail light / Indicator
SHIN YO LED tail light, brake light, turn signal SHORTY
Very unobtrusive and tinted plastic body. A bright LED taillight/indicator unit, E-approved for rear.
Sold Pair
PW-204-073
SHIN YO LED Indicator
This sturdy LED Insert is a smoke lens and is E-marked for front and rear use.
Sold Pair
PW-204-307
SHIN YO LED LOOP Indicator
This sturdy LED Insert has an oval light loop as a flashing light and is E-marked for front and rear use.
Sold Pair
Pin Components
HIGHSIDER CNC PIN WELDING HOUSING
Outside Dimensions: Diameter: 23 mm | Depth: 16 mm
Inside Dimensions: Diameter: 22 mm | Depth: 15 mm
Back hole: 5 mm
SHIN YO Lighting Inserts
Dimensions: Diameter: 20 mm | Depth: 14 mm
PW-207-603
HIGHSIDER CNC welding housing
Top CNC housing made of
good weldable steel.
Sold Ea
PW-255-143
SHIN YO LED TAILLIGHT
This sturdy LED Insert is a smoke lens and is E-marked.
Sold Each
PW-204-143
SHIN YO LED Indicator
This sturdy LED Insert is a smoke lens and is E-marked for front and rear use.
Sold Pair
MOUNTING HARDWARE
HSM Mounting Hardware
HSM-395101
Mirror Mount Indicator Brackets
For turn signals up to M10 For mounting under the handlebar fittings
Flasher bracket universal for handlebar fittings
For: all models and brands with M8 mirror mounting hole
Consists of: 2-part (1 pair) indicator bracket set for mounting indicators up to M10 below the handlebar fittings
HSM-220920-41
CNC Indicator Bracket for 41mm Forks
Bracket made of CNC milled aluminum with M8 lock nut
For indicators with 8mm thread
Suitable for fork tubes with a diameter of 41mm
Sold in Pairs
HSM-220920-47
CNC Indicator Bracket for 47mm Forks
Bracket made of CNC milled aluminum with M8 lock nut
For indicators with 8mm thread
Suitable for fork tubes with a diameter of 47mm
Sold in Pairs
HSM-220945

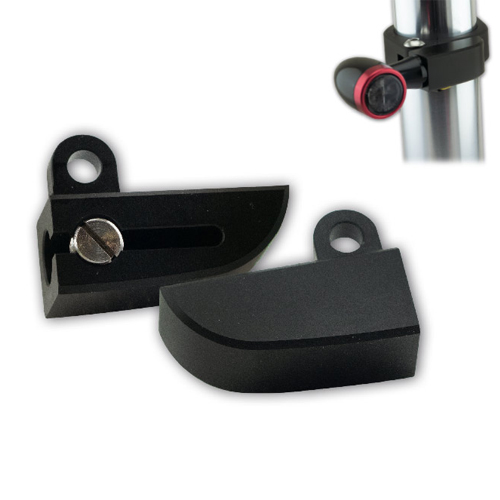

Turn Signal Holder for Fork Clamps 8mm thread
Turn Signal Holder for Fork Clamps for M8/8mm thread
Black
Sold In Pairs
IOMP Mounting Hardware
IOMP-10-105
REAR INDICATOR BRACKETS
Black powder coated rear turn signal brackets
Type 3 M8
Sold in Pairs
IOMP-10-109
UNDERMOUNT INDICATOR BRACKETS
Black powder coated indicator holder – M8 type 2.
Made of sturdy, stable material for M8 fixing
Suitable for original OEM handlebar controls and cable operated clutch
Sold in Pairs
Thunderbike Mounting Hardware
PW-207-120

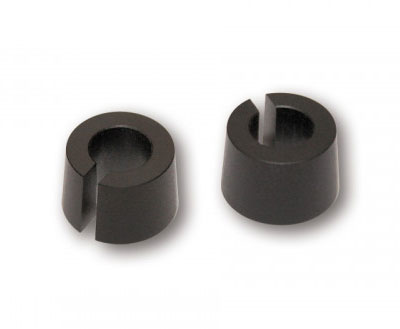

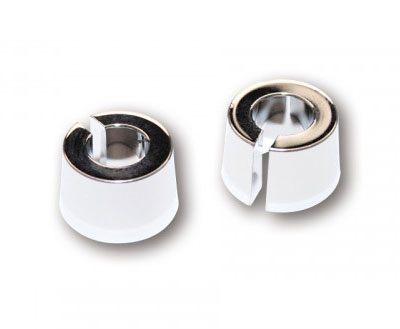

Conical Spacer Sleeve
These tapered spacer sleeves are made of aluminium for almost all indicators with a M8 threaded bolt from HIGHSIDER . With a slot for easy passage of cables. Can be used as turn signal extension either, or, if the threaded bolt protruding too long (for example, the fastening to the lamp holder), and abuts against the lamp housing.
Dimensions:
Diameter (tapered) 15.5 mm up to 14 mm
Length: 10 mm | Bore: 8 mm.
PW-207-121
Conical Spacer Sleeve
These tapered spacer sleeves are made of aluminium for almost all indicators with a M8 threaded bolt from HIGHSIDER . With a slot for easy passage of cables. Can be used as turn signal extension either, or, if the threaded bolt protruding too long (for example, the fastening to the lamp holder), and abuts against the lamp housing.
Dimensions:
Diameter (tapered) 15.5 mm up to 14 mm
Length: 10 mm | Bore: 8 mm.
PW-207-130
Cover sleeves for M8 indicator thread
HIGHSIDER plastic cover sleeves for turn signals with M8 thread
After installing the new turn signals, the plastic cover sleeves can be used to cover the M8 thread and fixing nut for a more beautiful finish and protection against corrosion.
Tailor-made for your bike, the extensive HIGHSIDER accessories are perfectly tailored to your bike. With a maximum of quality and functionality you can easily design your bike according to your wishes.
Scope of supply: 4 pieces
WIRING / BULBS
Wiring
PW-207-033
CAN-BUS resistor CBW1
HIGHSIDER CAN-BUS resistor CBW1 fits most vehicles that have a CAN-BUS system.
The CBW1 resistor provides a required electrical load for your vehicle, which, if the dip switches are set correctly, will result in no flashing of the accessory flashers in the cockpit. In addition, a reliability is given. This means: If the accessory indicators fail due to an electronic fault, an error message is immediately displayed in the cockpit. Up to 2 channels can be operated, such as turn signals at the rear left and turn signals at the rear right. If 2 pairs of indicators need to be changed,also 2 CBW1 needed to be used. Which requirements should be met in order to use the CBW1 on the motorbike:
Either: The motorbike was originally produced with LED indicators.
Or: The motorbike has a CAN-BUS System
If these requirements are not met, the CBW1 unit will not function
The following resistance values can be set on the CBW1:
150 ohms | 170 ohms | 240 ohms | 300 ohms
400 ohms | 600 ohms | 1200 ohms
Dimensions:
Height = 11mm
Width = 31mm (without straps)
Width = 46mm (with tabs)
Length = 40mm
Cable length = 200mm with pins
PW-208-109
HIGHSIDER PL CONTROL- BOX CB2 for indicators with DRL (Daytime Running Lights)
HIGHSIDER PL CONTROL- BOX CB2 (reverse polarity protected)
In just a few steps, the CONTROL – BOX is inserted between the 2 in 1 turn signals / position lights and now provides the optical highlight during the flashing process. This is because the position light now switches off when the indicator is switched on and only switches on again when the flashing process has finished. This means that both the position light and the indicator are used independently of each other.
Dimensions:
Diameter: 11 mm
Length: 17.5 mm
20500251
LED Signal Converter
2 Wire – Three Wire
For Dual Function Amber
* Running Lights and Marker lights
PW-207-020
Resistor with cables for LED indicator
27 Ohm/5 Watt with cable for LED indicators
KPR Bulbs
2060-0236
REPLACEMENT BULBS
All bulbs are packaged in blister packs and sold in packs of two unless otherwise noted
2060-0263
48 WIDE ANGLE SUPER BRIGHT GENESIS® LEDS
2.0″ diameter clusters with 48 5mm Amber LEDs per unit.
1156 bulb base for plug and play installation.
Lifetime warranty against LED failure.
Sold as a Pair.
