PLATINUM AIR BLEED FEED REAR SUSPENSION KITS

PAS-2018-SBF Gloss Black

Suits 2018-up FXBB Street Bob, FXLR Low Rider, FLSL Softail Slim, FXFB Fat Bob 107, FXFBS Fat Bob 114, FLDE Deluxe, FLFB Fat Boy 107, FLFBS Fat Boy 114, FLBS ANV Fat Boy Anniversary 114, FLBS ANX Fat Boy Anniversary 114, FXBR Breakout 107, FXBRS Breakout 114, FXBRS ANX Breakout Anniversary 114, FLHC Heritage Classic 107, FLHCS Heritage Classic 114, FLHCS ANV Heritage Classic Anniversary 114, FLSB Sportglide

Bleed Feed Air Ride Kits allow the rider to control both ride height and rebound. Developed by Platinum, Bleed Feed technology raises the bar as the industries best air suspension riding system

Min. Retracted 11”  /  Max. Extended 13”
Rear Lift: 4”  /  Shock Travel: 4”  /  Diameter: 3 1/2”
Air cylinders machined from 6061 T-6 billet aluminum.
Air-control valve, DOT- approved 1/4” line and fitting.
Switch harness, Air compressor.
Hardware and line cutter.
The system is also 100% made in the U.S.A. and comes complete with a limited one year warranty.

platinum-air-logo

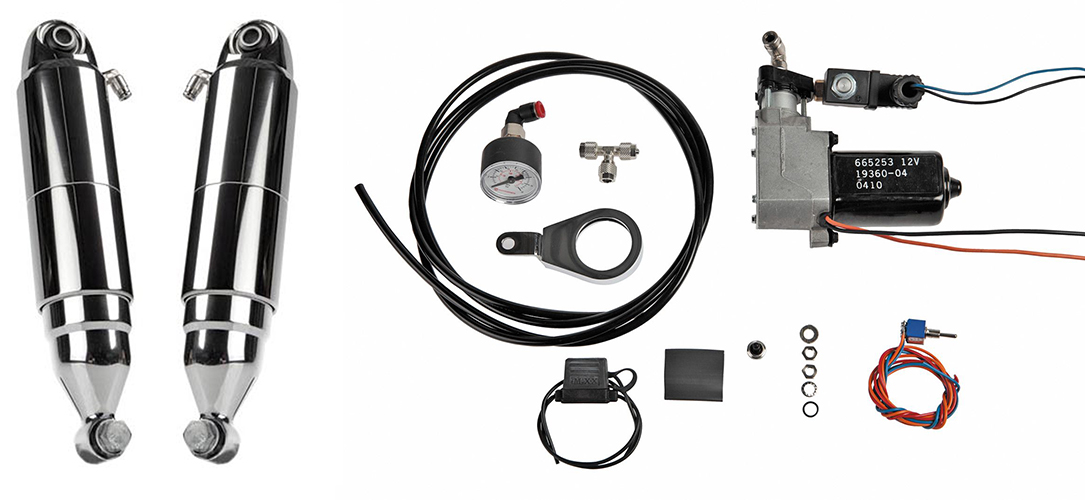

PAS-1702-FLH-B Gloss Black

Suits FLH and FLHT

Bleed Feed Air Ride Kits allow the rider to control both ride height and rebound. Developed by Platinum, Bleed Feed technology raises the bar as the industries best air suspension riding system

Min. Retracted 9 1/4”  /  Max. Extended 13”
Rear Lift: 3 3/4”  /  Shock Travel: 3 3/4”  /  Diameter: 2 1/2”
Air cylinders machined from 6061 T-6 billet aluminum.
Air-control valve, DOT- approved 1/4” line and fitting.
Switch harness, Air compressor,
Hardware and line cutter.
The system is also 100% made in the U.S.A. and comes complete with a limited one year warranty.

PAS-0000-TBF-B Gloss Black

Suits Twin Cam Softails

Bleed Feed Air Ride Kits allow the rider to control both ride height and rebound. Developed by Platinum, Bleed Feed technology raises the bar as the industries best air suspension riding system

Min. Retracted 9”  /  Max. Extended 11”
Rear Lift: 5”  /  Shock Travel: 2”  /  Diameter: 2 3/4”
Two air cylinder machined from 6061 T-6 billet aluminum.
Machined stainless steel rods and end caps.
Stainless steel splashguard complete with air-control valve assembly fastened to it.
DOT- approved 1/4” line and fitting, Switch harness.
Air compressor, Hardware and line cutter.
Complete with one year warranty. Made in the U.S.A.

PAS-8699-EBF-B Gloss Black

Suits EVO Softails

Bleed Feed Air Ride Kits allow the rider to control both ride height and rebound. Developed by Platinum, Bleed Feed technology raises the bar as the industries best air suspension riding system

Min. Retracted 11”  /  Max. Extended 13”
Rear Lift: 5”  /  Shock Travel: 2”  /  Diameter: 2 3/4”
Two air cylinder machined from 6061 T-6 billet aluminum
Machined stainless steel rods and end caps.
Stainless steel splash guard complete with air-control valve assembly fastened to it.
DOT- approved 1/4” line and fitting, plus switch harness, air compressor, hardware and line cutter.
System comes complete with one year warranty. Made in the U.S.A.

PAS-1702-VRBF-B Gloss Black

Suits V-Rod Models

Bleed Feed Air Ride Kits allow the rider to control both ride height and rebound. Developed by Platinum, Bleed Feed technology raises the bar as the industries best air suspension riding system

Min. Retracted 10 3/4”  /  Max. Extended 13”
Rear Lift: 2 1/4”  /  Shock Travel: 2 1/4”  /  Diameter: 2 1/2”
Two air cylinder machined from 6061 T-6 billet aluminum.
Air-control valve. DOT- approved 1/4″ line and fitting.
Switch harness. Air compressor. Hardware and line cutter.
System comes complete with one year warranty.
Made in the U.S.A

PLATINUM AIR SIMPLE AIR RIDE SUSPENSION KITS

platinum-air-logo

PAS-1702-DD-B Gloss Black

Suits 1985-up Dyna Models

Platinum’s Simple Air Ride Suspension Kit for DYNA models allows you to control your ride height and rebound. Controlled by positive pressure at all times, this system is easily adjusted at the flip of a switch for complete comfort for the riders weight or road conditions.

Min. Retracted 9 1/4”  /  Max. Extended 13”
Rear Lift: 3 3/4”  /  Shock Travel: 3 3/4”  /  Diameter: 2 1/2”
Two air cylinder machined from 6061 T-6 billet aluminum.
Air-control valve. DOT- approved 1/4″ line and fitting.
Switch harness. Air compressor.
Hardware and line cutter.
System comes complete with one year warranty.
Made in the U.S.A.

SOFTAIL AIR SUSPENSION (SAS)

sas_web-banner
You can raise and lower the bike at the touch of a button.

Add extra air to compensate for you passenger, then release some for solo riding. You can also release all the air and park your bike down on the ground. Adjustable air pressure make for smooth comfortable ride under any condition. No more bottoming out.

SAS-00

Fits Softail models 2000 to 2017  and FXSB Breakout® 2013-2017

SAS-99

Fits 1999 & earlier Softail frames

SAS-XL

Fits 1999 & earlier Softail frames

SAS XL versions have an added 5/8″ length to the cylinder housing – giving you about 2″ more travel at the swing arm for a total of approx 6″. Ideal for custom bikes that are extra low and need the extra lift to raise the bike to a rideable height.

MUELLER LOWERING KITS

PW-448-200

Suits 18-19 18-19 M8 FXBR, FXFB, FXFBS, FLDE, FLFB, FLHC, FXBRS, FLSB

Lowers by up to 35 mm (1.3″) on FXBR models (40 mm (1.5″) for show purposes)
•Stepless lowering by up to 35 mm (1.3″) on FXBB models
•No re-pressing of the original needle bearing necessary as they are already delivered with bearings
•Installation without shortening the threaded rod

PW-448-201

Suits 18-19 18-19 M8 FXBB, FXLR, FLSL

Lowers by up to 35 mm (1.3″) on FXBR models (40 mm (1.5″) for show purposes)
•Stepless lowering by up to 35 mm (1.3″) on FXBB models
•No re-pressing of the original needle bearing necessary as they are already delivered with bearings
•Installation without shortening the threaded rod

PW-130-10

For FXST / FLST models 89-99

Individually adjustable from 0 – 40mm (0″ – 1.5″)
For show purposes a lowering up to 80mm (3″) is possible
No re-pressing of the original bearings on EVO models
Height adjustment even when installed on Twin-Cam models
Suspension can also be up to 30mm (1″) higher on Twin-Cam models

PW-130-20

For FXST / FLST models 00-17

Individually adjustable from 0 – 40mm (0″ – 1.5″)
For show purposes a lowering up to 80mm (3″) is possible
No re-pressing of the original bearings on EVO models
Height adjustment even when installed on Twin-Cam models
Suspension can also be up to 30mm (1″) higher on Twin-Cam models

IOMP SWINGARM PIVOT BLOT COVERS

SWINGARM PIVOT BOLT COVERS

Suits 08-17 FXST Models
Gloss black swingarm pivot axle covers made of CNC machined high-strength aluminum
• Both covers are clamped with a VA grub screw for a nice clean look
• Sold in Pairs

SWINGARM PIVOT BOLT COVERS

Suits 18-UP FXST Models
• Gloss black swingarm pivot axle covers made of CNC machined high-strength aluminum
• The cover is clamped with a VA grub screw for a nice clean look
• Sold Each

SWINGARM PIVOT BOLT COVERS

Suits 19-UP FXDR Models
Gloss black swingarm pivot axle covers made of CNC machined high-strength aluminum
• The cover is clamped with a VA grub screw for a nice clean look
•  Sold Each

LEFT SWINGARM PIVOT BOLT COVER BLACK

Suits 18-UP FXST Models
Gloss black swingarm pivot axle covers made of CNC machined high-strength aluminum
• Sold Each

RIGHT SWINGARM PIVOT BOLT COVER BLACK

Suits 18-UP FXST Models
Gloss black swingarm pivot axle covers made of CNC machined high-strength aluminum
• The left axle cover #TB-22-74-130 is required for mounting the right cover.
• Sold Each

LEFT SWINGARM PIVOT BOLT COVER POLISHED

Suits 18-UP FXST Models
Polished swingarm pivot axle covers made of CNC machined high-strength aluminum
• Sold Each

RIGHT SWINGARM PIVOT BOLT COVER POLISHED

Suits 18-UP FXST Models
Polished swingarm pivot axle covers made of CNC machined high-strength aluminum
• The left axle cover #TB-22-74-140 is required for mounting the right cover.
• Sold Each

IOMP SHOCK BOLT COVERS

SHOCK BOLT COVERS

Suits 18-UP M8 Models
Gloss black shock bolt covers made of CNC machined high-strength aluminum
• Both covers are clamped with a VA grub screw for a nice clean look
• Sold Each

IOMP TOP FORK BOLT COVERS

TOP FORK BOLT COVERS

Suits 13-17 FXSB Models (Will not fit CVO models)
• Black powder coated top fork caps
• Covers are clamped by a grub screw
• Sold in Pairs

TOP FORK BOLT COVERS

Suits 18-UP FXST Models
• Black powder coated top fork caps
• Covers are clamped by a grub screw
• Sold in Pairs

IOMP UPPER FORK COVERS

UPPER FORK COVERS

Suits 13-17 FXSB Models
• Black high-strength aluminum upper fork tube covers to suit 13-17 Breakout models with 49mm fork tubes
• Made to fit exactly between the top & bottom of the triple trees with no gap & no rattle
• Sold in Pairs

UPPER FORK COVERS

Suits 18-UP FXBR Models
• Black high-strength aluminum upper fork tube covers to suit 18-UP Breakout models with 49mm fork tubes
• Made to fit exactly between the top & bottom of the triple trees with no gap & no rattle
• Sold in Pairs

UPPER FORK COVERS

Suits 18-UP FXBB Models
• Black high-strength aluminum upper fork tube covers to suit 18-UP Street Bob models with 49mm fork tubes
• Made to fit exactly between the top & bottom of the triple trees with no gap & no rattle
• Sold in Pairs

IOMP UPPER FORK COVERS WITH INDICATORS

UPPER FORK COVERS WITH INDICATORS

Suits 13-17 FXSB Models
• Black high-strength aluminum upper fork tube covers with indicators to suit 13-17 Breakout models with 49mm fork tubes
• Made to fit exactly between the top & bottom of the triple trees with no gap & no rattle, cable ducts on the inside, cable exits at the upper fork bridge
• Sold in Pairs

UPPER FORK COVERS WITH INDICATORS

Suits 07-17 Dyna Models
• Black high-strength aluminum upper fork tube covers with indicators to suit 07-17 Dyna models with 49mm fork tubes
• Made to fit exactly between the top & bottom of the triple trees with no gap & no rattle, cable ducts on the inside, cable exits at the upper fork bridge
• Sold in Pairs

UPPER FORK COVERS WITH INDICATORS

Suits 18-UP FXBR Models
• Black high-strength aluminum upper fork tube covers with indicators to suit 18-up Breakout models with 49mm fork tubes
• Made to fit exactly between the top & bottom of the triple trees with no gap & no rattle, cable ducts on the inside, cable exits at the upper fork bridge
• Sold in Pairs

UPPER FORK COVERS WITH INDICATORS

Suits 08-UP FXBB Models
• Black high-strength aluminum upper fork tube covers with indicators to suit 18-up Street Bob models with 49mm fork tubes
• Made to fit exactly between the top & bottom of the triple trees with no gap & no rattle, cable ducts on the inside, cable exits at the upper fork bridge
• Sold in Pairs
